Product Introduction:

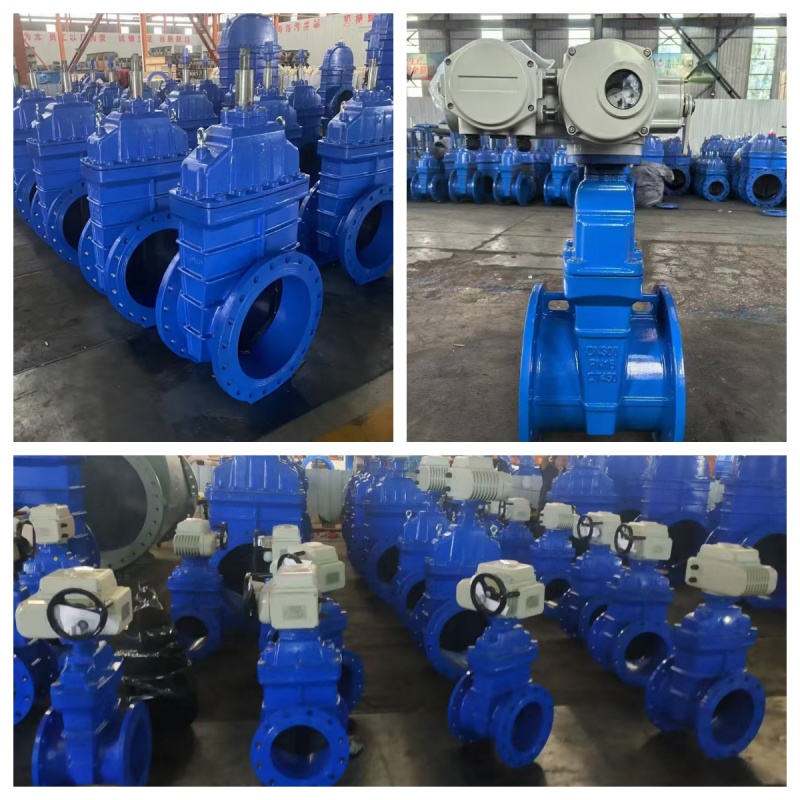

Electric Resilient Seated Gate Valve.

Model: Z945X (Non-rising stem) ,Electric resilient seated gate valve consists of ductile iron resilient seated gate valve and electric actuator.

It is widely used as automatic isolation valve for intelligent water supply, sewage treatment, fire protection and HVAC pipeline systems.

Features:

1.Ductile iron QT450 body with epoxy coating, suitable for potable water.

2.EPDM fully coated wedge, bi-directional tight shut-off, zero leakage.

3.Full bore design, low flow resistance, convenient for pipeline pigging.

4.Electric & manual dual operation: Manual override available during power failure.

5.Two control options: On-off type / Modulating type (4-20mA signal for flow regulation).

6.Actuator protection class IP65; power supply: AC220V / AC380V.

Specifications:

Operation type:Electric

Size: DN50-DN1200

Pressure: PN10/16, Class150,JIS6K/10K

Design Standard:DIN3352,BS5150,EN593, API609

Face to Face Standard: API609,BS5150,DIN3202 F4/F5

Flange Standard:BS4540,DIN2532/2533,ANSI B16.10

Test Standard: BS10 Table D and E  EN 12266-1, API 598

Materials:

Body : Ductile Iron

Wedge:Ductile Iron+EPDM

Stem : Stainless Steel

Characteristic:

Applicable Medium: Water, Oil, Gas

Applicable Temperature:0~80℃

All valves are equipped with professional export protective packaging.

With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.

We can also customize packaging according to customer requirements.

Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.

Common transportation methods include: sea freight, air freight, land freight, and express delivery.
