Product Introduction:

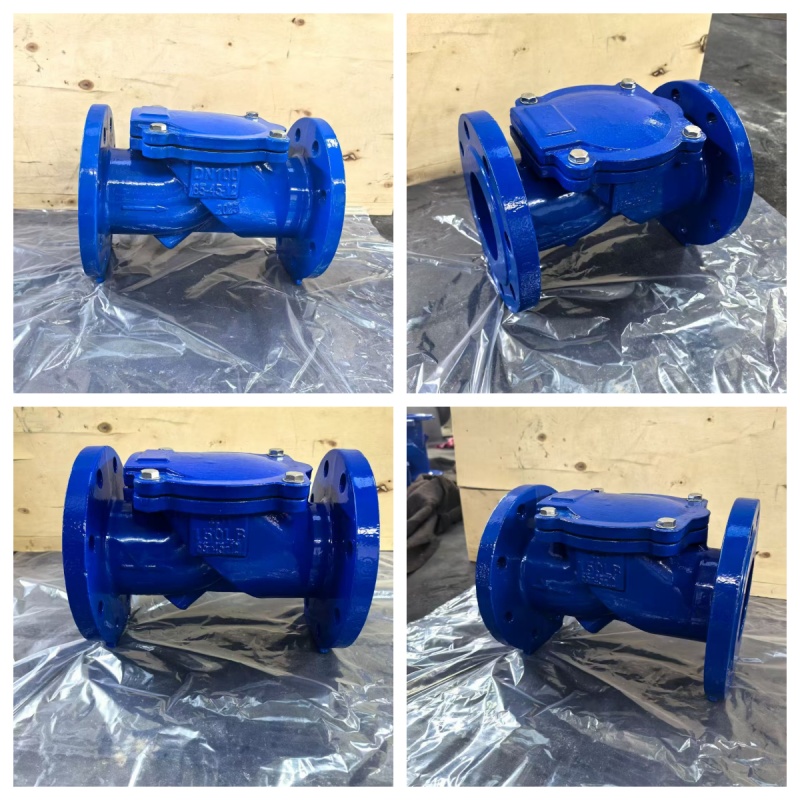

Rubber Flap Check Valve
This flanged swing check valve adopts rubber flap opening and closing structure, excellent passing performance for sewage, silt and impurity medium.
It realizes tight soft sealing to prevent pipeline backflow and pump reverse rotation.
Top cover quick maintenance design, only replace rubber flap for repair.
Application: Sewage pump station, municipal water supply, cooling water pipeline, fire protection pipeline to prevent backflow and pump reverse rotation.
Specifications:
Size: DN50-DN1200
Pressure: PN10/16, Class150,JIS6K/10K
Standard:DIN 3032,BS5153,ANSI B16.10
Materials:
Body : Ductile Iron
Ball: EPDM/NBR
Seat : Cast Bronze
Characteristic:
Applicable medium：Water, Oil, Gas
Applicable Temperature:-10~80℃
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
