Product Introduction：

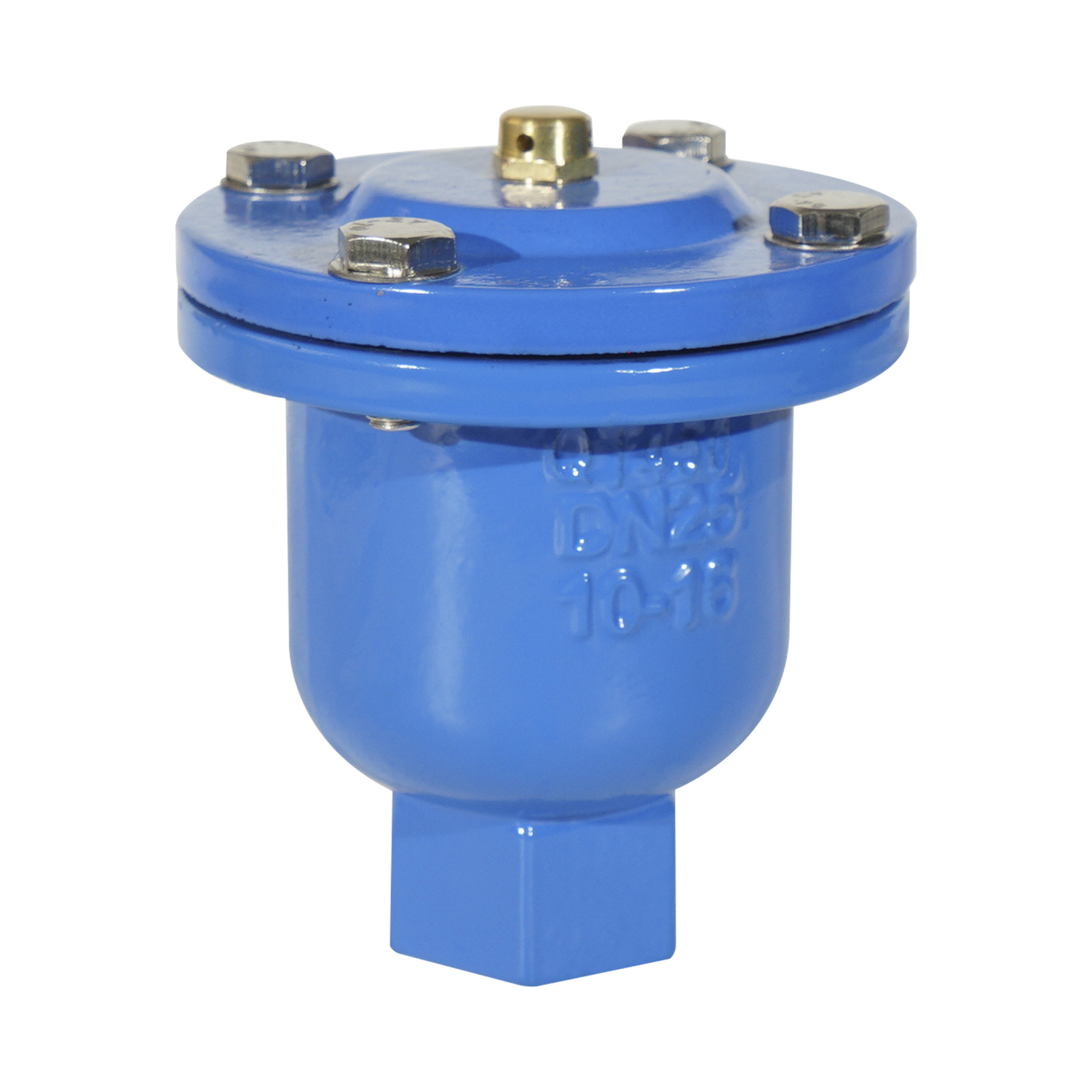

An automatic air vent valve is a device that automatically removes air using an internal opening and closing mechanism.

It is mainly used in hot water heating systems, fire sprinkler systems, and HVAC systems.

It employs a float-based opening and closing mechanism: when the valve is full of water, the float rises and closes the vent; when air accumulates and the water level drops, the float, under its own weight, falls and opens the vent to release air; and when the system is under negative pressure, it draws in outside air to prevent hazards.

Application:

Essential components for water supply and drainage, floor heating pipes, central air conditioning water circulation pipes, and fire protection water supply pipes;

Continuous removal of gas accumulation in the pipeline to solve problems such as gas blockage, reduced water flow, abnormal noise and vibration of the pipeline, cavitation of the water pump, and pipeline gas resistance;

Installed vertically at the highest point of the pipeline (where the gas accumulates), it is a standard small valve for the water and heating pipeline network.

Specifications:

Size: DN15-DN300

Pressure: PN10/16, Class150,JIS6K/10K

Flange Standard:DIN,BS,ISO,ANSI,AS,JIS

Materials:

Body : Ductile Iron

Float Ball:Stainless Steel

Seal : EPDM

Characteristic:

Applicable Medium: Water, Oil, Gas

Applicable Temperature:0-80℃

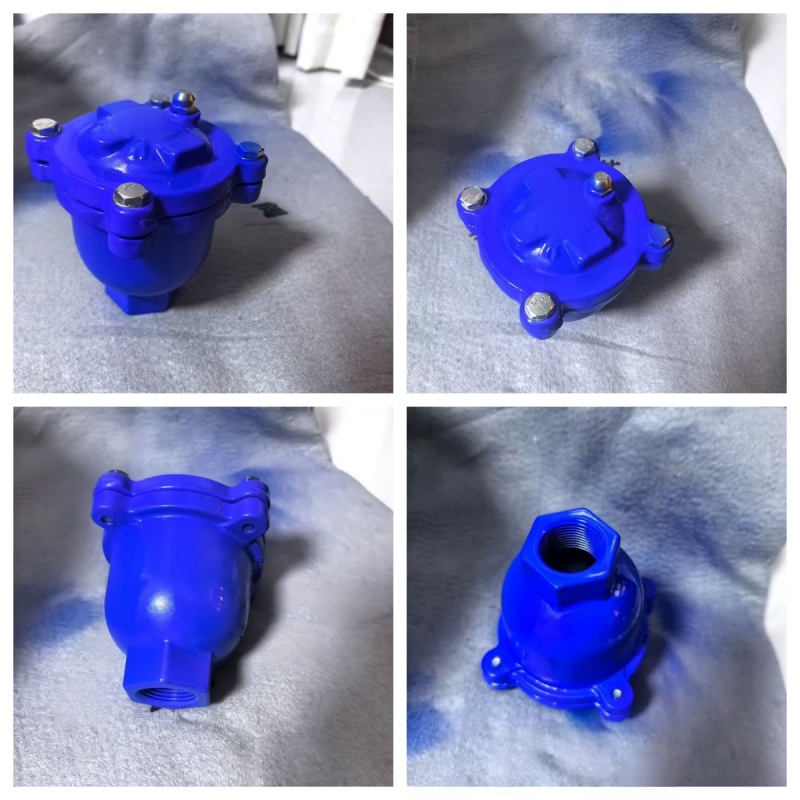

All valves are equipped with professional export protective packaging.

With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.

We can also customize packaging according to customer requirements.

Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.

Common transportation methods include: sea freight, air freight, land freight, and express delivery.
