Product Introduction：

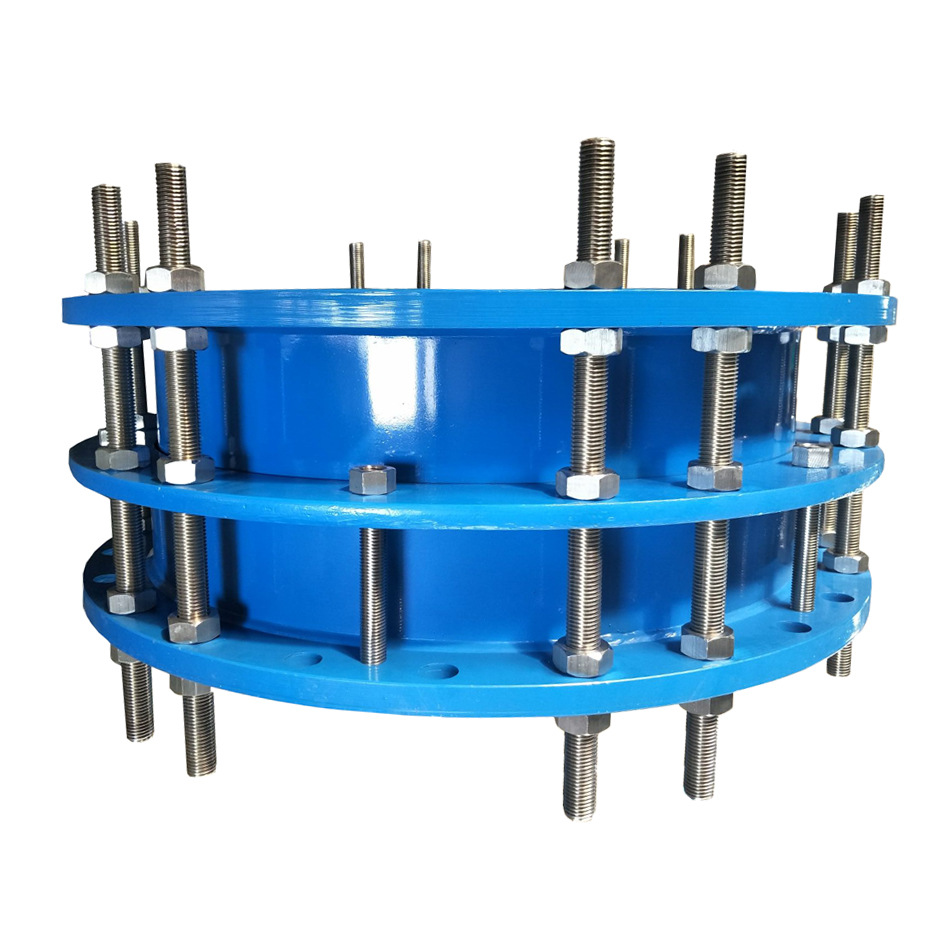

The official model of this product is C2F/VSSJAF - Double Flange Force Transmission Joint, also known as Double Flange Limiting Expansion Joint or Removable Pipeline Compensation Joint. The main body is a steel welded structure, with a blue epoxy anti-corrosion coating on the outer wall.

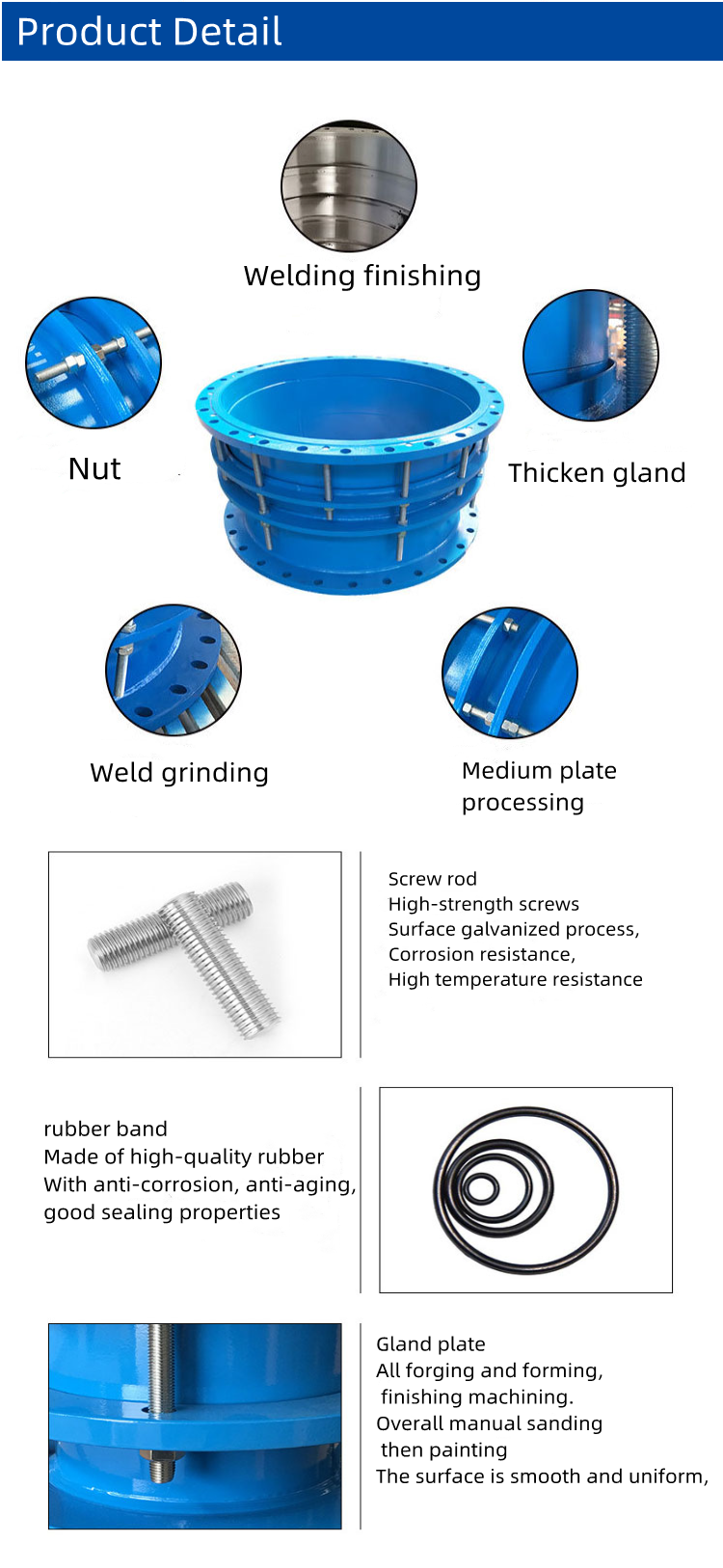

It is composed of three flanges, an expansion sleeve, and multiple long bolt limiting assemblies. It is a special matching pipe fitting for the connection of flange pipelines and valves.
Advantages :
1. The force transmission joint utilizes the principle of rubber compression elastic deformation. The forced seal deforms on the outer wall of the expansion joint, achieving a static seal.
2. The metal sealing ring of the force transmission joint should be strictly selected according to performance requirements and user specifications.
The outer coating is made of high-strength anti-corrosion paint, and all connecting bolts are made of high-strength carbon steel or stainless steel.
Due to the gap between the pipe body and the expansion joint, axial and radial displacement is possible.
3. The force transmission joint is easy to install, facilitating valve installation and withstanding the axial tension of the pipeline.
4. The force transmission joint uses metal castings or welding. The loose part uses a trapezoidal rubber sealing ring, which is effective under the influence of the gland and bolts.
5. The force transmission joint effectively compensates for and alleviates the thrust of the pipeline and blind flange, facilitating the installation and maintenance of pumps and valves.
It is an ideal supporting product for the pipeline installation and transportation industry.
Specifications:
Size: DN50-DN3600
Pressure: PN10/16/25, Class150,JIS6K/10K
Standard:EN598, EN545,DIN 2501,DIN3202,ISO 2531,AWWA110/153
Materials:
Body : Ductile Iron
Gasket: NBR
Cover:Ductile Iron
Limited Short Pipe:WCB
Long Stud:WCB
Bolt：WCB
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-20~120℃
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
