Product Introduction:

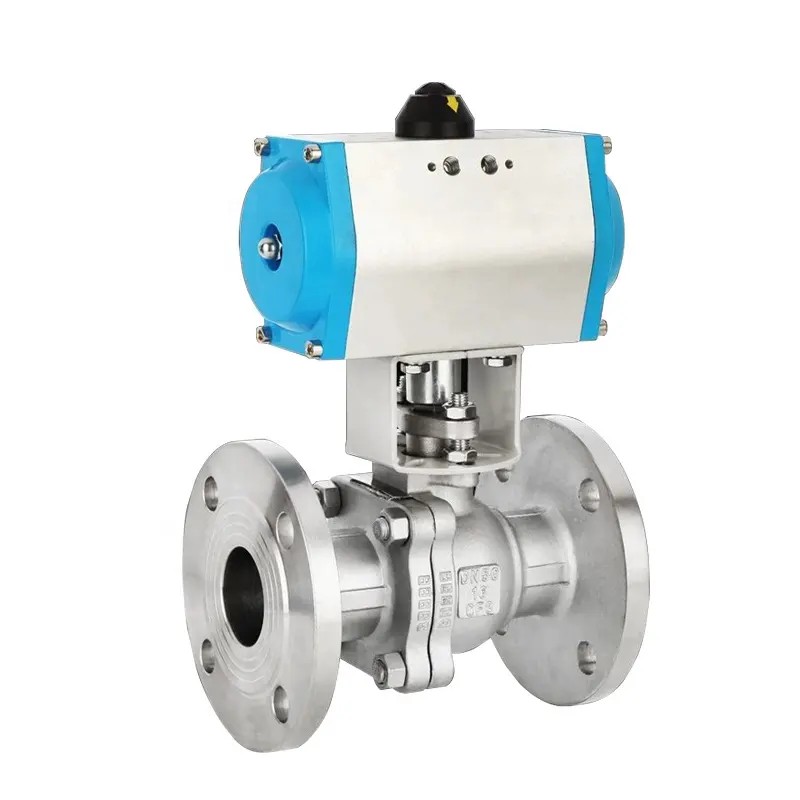

Pneumatic flanged ball valve is composed of flanged ball valve body and pneumatic rack & pinion actuator, 90-degree quarter turn operated by compressed air for pipeline shut-off or modulating control. It is divided into double acting and spring return single acting actuator, matched with solenoid valve, limit switch or positioner for automatic control.

Body Type:

2-piece floating ball, 3-piece ball valve, trunnion fixed ball valve.

Seat Choice: PTFE soft seat (bubble tight shut-off) / metal hard seat (high temperature & abrasion resistant).

Actuator Option: Double acting (air to open & air to close), spring return (fail open / fail close for safety cut-off).

Material: Carbon Steel WCB, SS304, SS316L.

Pressure & Size: PN16-PN64 / Class150-Class600, DN15-DN1200.

Features:

1.Fast on-off action for emergency pipeline cut-off;

2.Intrinsically safe pneumatic drive, perfect for explosive gas & petrochemical hazardous area;

3.Spring return design for fail-safe protection against air supply loss;

4.Low flow resistance, bidirectional sealing, easy maintenance.

Application: Natural gas pipeline, petrochemical plant, heating system, water treatment, central air conditioning, oil depot loading & unloading system.

Custom flange standard, explosion-proof accessories, actuator action mode are available, with 18-month quality warranty.

Key technical parameters:

1. Nominal diameter: DN15 to DN1200.

2. Nominal pressure: PN16, PN25, PN40, PN64; American standard Class150/300/600.

3. Flange standard: Customizable to national standard GB, American standard ANSI, German standard DIN.

4. Air source pressure: Commonly 0.4~0.6 MPa of clean compressed air.

5. Protection level: Valve body IP65, explosion-proof ExdⅡBT4/CT6.

6. Medium compatibility: Water, steam, natural gas, liquefied gas, oil products, compressed air, acid and alkali media.

Advantages:

Super-fast opening and closing speed: The pneumatic actuator can complete a 90° switch within 1 second, making it suitable for quickly cutting off in emergency situations;

2.Natural explosion-proof safety: No motor sparks, preferred explosion-proof valves for hazardous areas such as oil and gas, coal chemical, and gas;

3.Fault safety option: Single-acting spring reset type, automatic valve closure in case of loss of air supply, avoiding risk of medium leakage;

4.Advantages of the ball valve body: Extremely low flow resistance in a straight-through channel, no installation direction requirement for two-way sealing, zero leakage sealing;

5.Suitable for high-frequency operation: Cylinder can withstand multiple openings and closings per minute, suitable for frequent switching in circulation pipelines;

6.Comprehensive and expandable accessories: Can be equipped with valve position feedback, solenoid valve, pressure reducing valve, and directly connected to PLC automatic control system.

All valves are equipped with professional export protective packaging.

With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.

We can also customize packaging according to customer requirements.

Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.

Common transportation methods include: sea freight, air freight, land freight, and express delivery.
