Product Introduction：

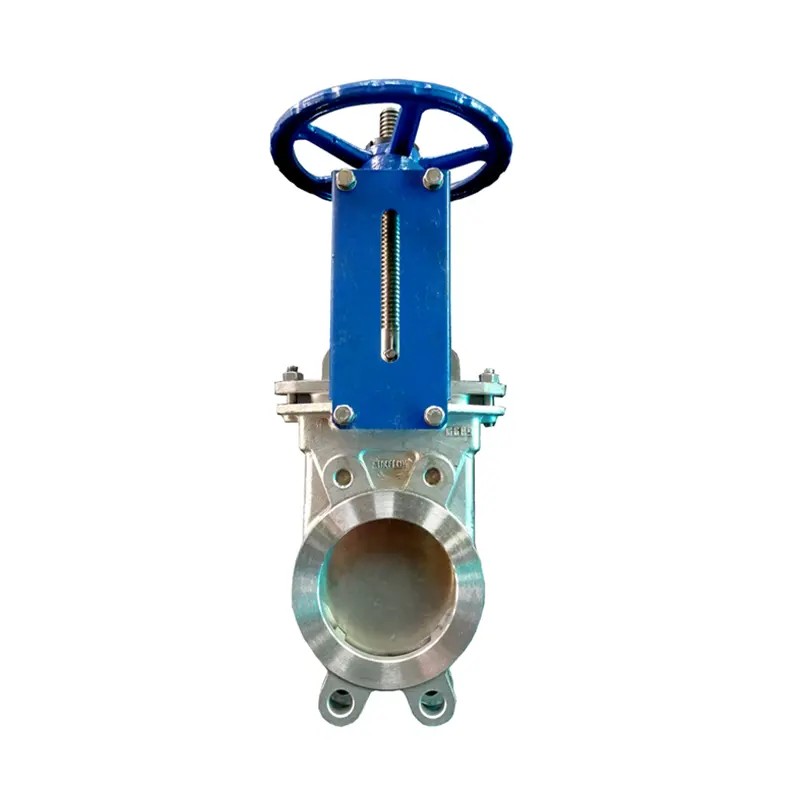

Metal seated wafer knife gate valve adopts metal-to-metal hard sealing, blade gate design for cutting fiber, slag, dust and high-temperature medium.

Compact wafer installation for slurry, ash, flue gas shut-off service, not for throttling.

Features:

1.High-temperature resistance performance is outstanding:

Suitable for high-temperature working conditions ranging from -40℃ to 425℃. It is fully compatible with steam, high-temperature smoke, and hot slag slurry conditions. The soft-sealed gate valve will age and fail above 80℃;

2.Super strong wear resistance and erosion resistance:

The metal sealing surface can withstand high-speed erosion by slag, coal powder, furnace ash, and sand and stones. Its service life is 3 to 5 times that of the rubber soft-sealed gate valve;

3.Resistant to dry grinding and no aging:

In long-term opening and closing of dry dust and hot air pipelines, there will be no problem of seal components swelling or cracking;

4.Compatible with high-pressure conditions: The maximum pressure-bearing capacity is PN16, and it can be used in pressurized ash and slag discharge pipelines.

Specifications:

Operation type:Manual -Handwheel

Size: DN50-DN1200

Pressure: PN10/16, Class150

Materials:

Body : CF8

Knife:CF8

Seat:CF8

Stem : Stainless Steel

Handwheel :Cast Iron

Characteristic:

Applicable Medium: Water, Oil,,Pulp,Slurry

Applicable Temperature:-20~425℃

All valves are equipped with professional export protective packaging.

With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.

We can also customize packaging according to customer requirements.

Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.

Common transportation methods include: sea freight, air freight, land freight, and express delivery.
