Product Introduction：

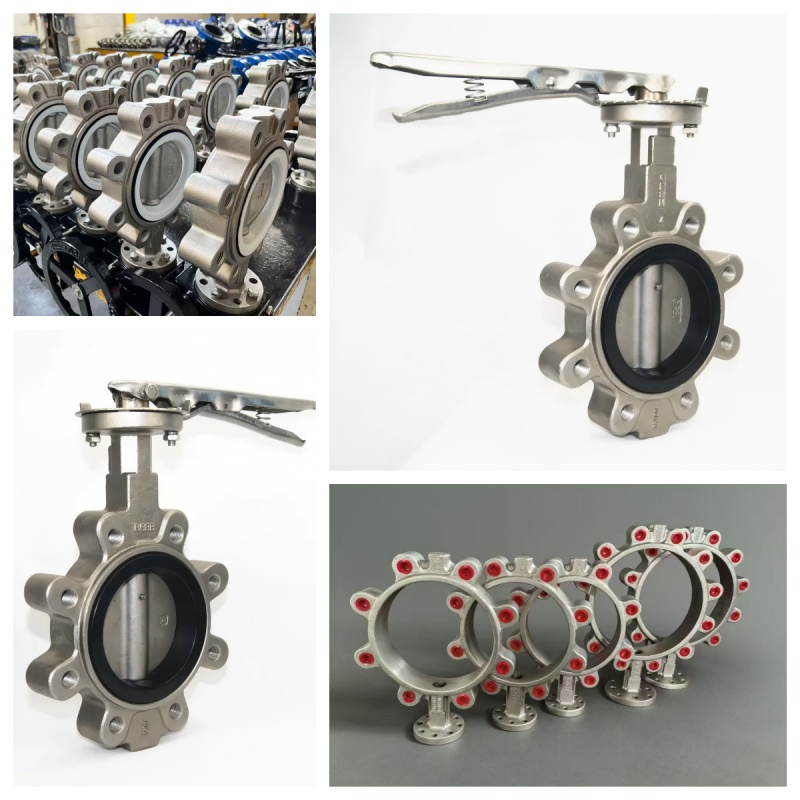

The stainless steel lug butterfly valve features a body and disc made entirely of cast stainless steel (CF8/304, CF8M/316).
The valve body has integrally cast threaded lugs on both sides, forming a concentric soft-seal structure. A 90° rotation enables on/off switching and flow regulation.
It meets Chinese national standards PN10/PN16 and American standards Class150/300, and complies with API609 and ASME B16.5 standards.
Advantages:
The all-stainless steel construction provides strong corrosion resistance, and the lug structure allows for single-flange pressure bearing at the end.
It is a dedicated shut-off valve for seawater, chemical acid/alkali, food, and pharmaceutical corrosion-resistant pipelines.
It supports multiple actuation methods including handle, turbine, pneumatic, and electric.
Specifications:
Operation type:Manual-Lever
Size: DN40-DN1200
Pressure: PN10/16, Class150,JIS6K/10K
Design | Flange Connection | Face to Face | Test |
MSS SP-67
API609
EN593 | DIN PN10/16/25; ANSI B 16.1
BS4504; ISO PN10/16
JIS B 2212/2213
BS 10 table D; BS 10 table E | API609
ISO5752 BS5155 | API 598 |
|
--------------------------------------------------------------------------------------------------------
Materials:
Body : CF8
Disc: CF8
Seal : EPDM
Stem : Stainless Steel
Lever:Stainless Steel
No. | Part Name | Material |
1 | Body | Cast Iron/Carbon Steel/Stainless Steel/Al-Bronze |
2 | Disc | Cast Iron/Stainless Steel/Al-Bronze |
3 | Seat | EPDM/PEFE/Buna/NBR/Hypalon/Viton |
4 | Stem | WCB/SS416/SS410 |
5 | Bushing | PTFE/Lubricating |
6 | O ring | EPDM/PEFE/Buna/NBR/Hypalon |
-------------------------------------------------------------------------------------------------------------------------------------
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-20~120℃
Nominal Pressure (Mpa) | 1.0 | 1.6 |
Nominal Diameter(mm) | 40-600 | 40-600 |
Test Pressure (Mpa) | Shell | 1.5 | 2.4 |
Seal | 1.1 | 1.76 |
Applicable Temperature | -20-120℃ |
Applicable Medium | Water, Sewage, Sea water, Air, Food, Medicine, Oils, Acids, etc. |
Operating Type | Manual, Worm Gear, Pneumatic, Electric, etc. |
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
