Product Introduction:

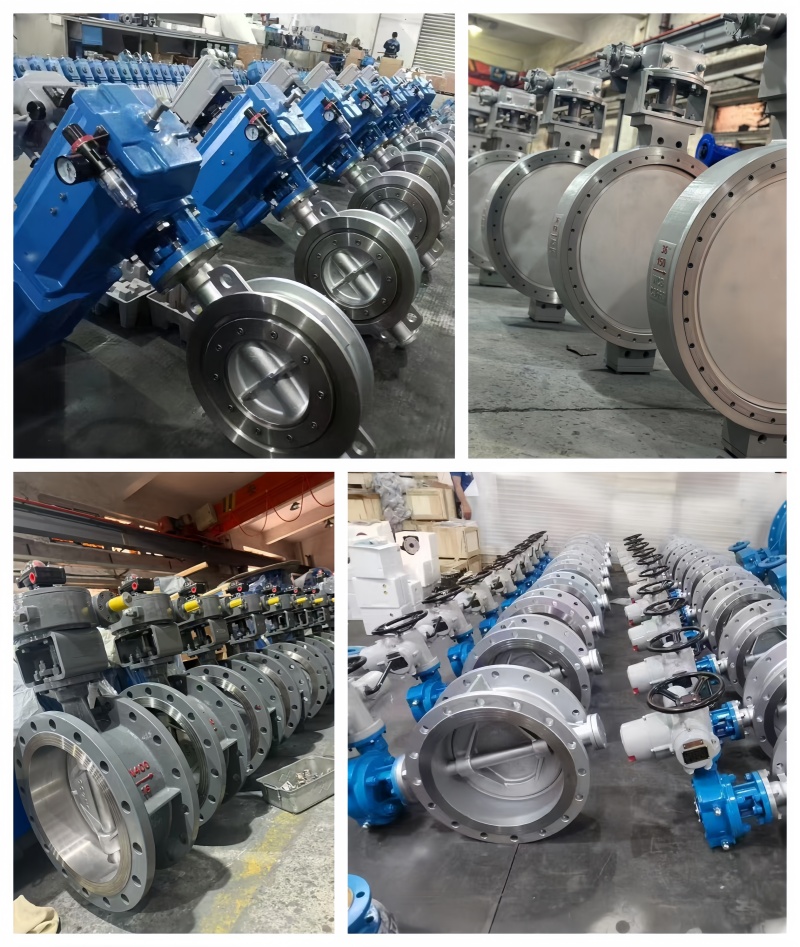

D673H pneumatic wafer triple eccentric metal seated butterfly valve consists of triple offset wafer butterfly valve and pneumatic actuator.
Driven by compressed air, the disc rotates 0°~90° to realize quick shut-off or flow regulation.
With triple offset wedge metal hard seal structure, no friction between sealing surfaces during operation.
It provides bi-directional tight shutoff, excellent performance on high temperature resistance, high pressure resistance, abrasion resistance and fire safety.
Compact wafer design saves installation space.
Application Fields:
Thermal power plant, district heating steam pipeline, petrochemical industry, metallurgical flue gas pipeline, coal chemical, gas transportation, thermal oil heating system.
Main Technical Parameters
Model: D673H
Nominal Diameter: DN50～DN1200.
Pressure Rating: PN16, PN25, PN40; ASME Class150 / 300 .
Valve Body Material: WCB carbon steel, CF8 (304), CF8M (316) stainless steel.
Sealing Components: 304/316 multi-layer metal hard seal.
Applicable Media: Steam, heat transfer oil, fuel oil, high-temperature flue gas, fuel gas, process gas.
Operating Temperature: -40℃～425℃ (upgradeable to 600℃ with material upgrades).
Connection Method: Wafer type.
Drive Air Source: 0.4～0.7MPa compressed air.
Drive Type: Double-acting / Single-acting spring return.
Control Mode: Two-position switch control, 4～20mA regulating control.
Standards: GB/T12238, API609, GB/T13927, API598.
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
