Product Introduction:

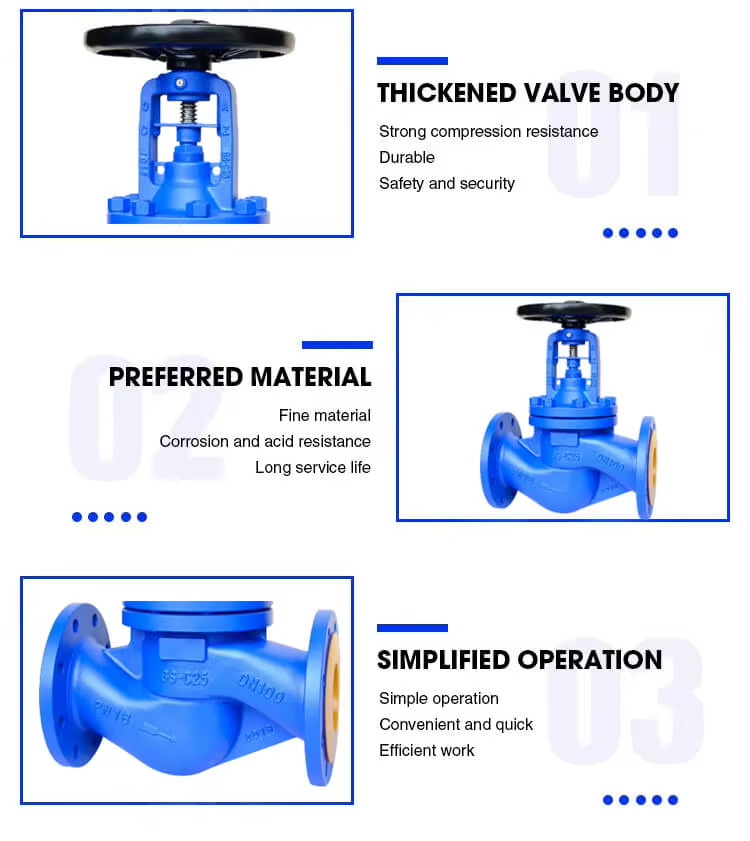

Cast iron globe valve is a forced-sealing valve.
The disc moves up and down driven by stem to open or shut pipeline flow.
Medium normally flows in from below the disc and exits from top.
Valve body material is HT200 grey cast iron with competitive cost.
Widely applied in HVAC, municipal water supply, heating pipeline, low-pressure steam and water circulation systems for fluid isolation.
Main Features:
Forced tight sealing; reliable shut-off performance.
Bolted bonnet design, easy disassembly and on-site maintenance.
Bronze trim option provides good wear resistance for low-pressure steam service.
Moderate throttling capability; higher flow resistance than gate valve.
Economic grey cast iron body for non-corrosive neutral media.
Specifications:
Operation type:Manual-Hand wheel
Size: DN50-DN600
Pressure: PN10/16/ Class125/150,JIS6K/10K
Face to Face Standard: API609,BS5155,DIN3202,ISO5752
Flange Standard:DIN,BS,ISO,ANSI,AS,JIS
Materials:
Body : Ductile Iron
Disc: Cast Bronze
Seat Ring:Cast Bronze
Gasket:Brass
Stem : Stainless Steel
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-20~120℃
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
