Product Introduction:

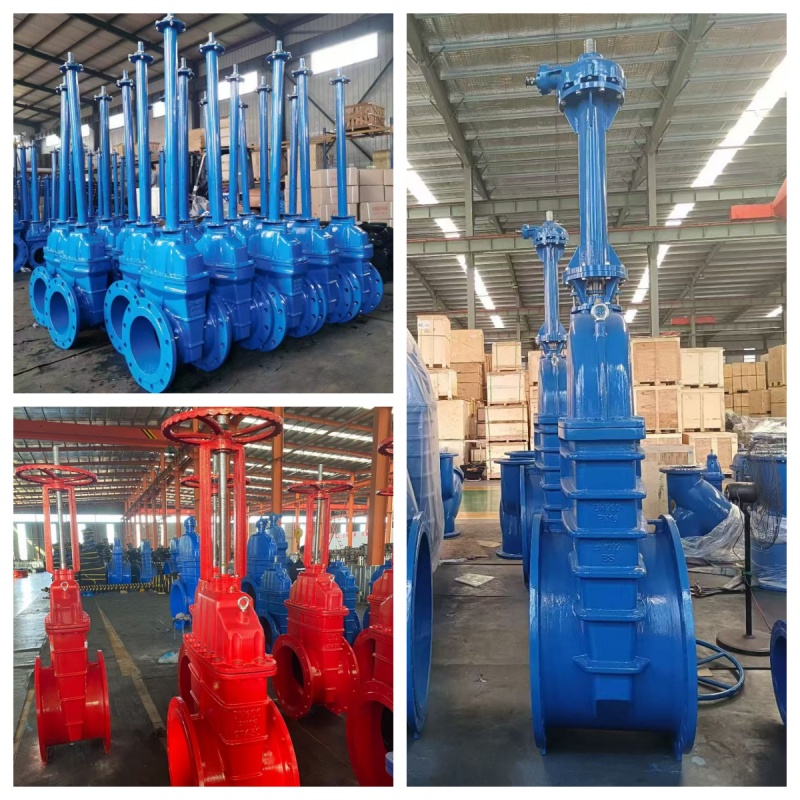

Extension Spindle Resilient Seated Gate Valve.
Model: MZ45X-16Q (Buried Underground Gate Valve).
The extension spindle resilient seated gate valve is specially designed for underground buried water pipelines, developed based on non-rising stem resilient seated gate valve Z45X.
The valve body is installed underground. The extended transmission spindle transfers operation torque to ground level.
Operators can open/close the valve on the surface without entering valve chamber. It greatly reduces civil engineering cost for valve pits.
Main Features
1.Ductile iron QT450 body with epoxy coating, anti-corrosion for underground environment.
2.EPDM fully wrapped wedge, bi-directional bubble tight shut-off, zero leakage.
3.Full bore design, low flow resistance, suitable for pipeline pigging.
4.Stainless steel extension spindle; fixed type or telescopic adjustable spindle for different buried depth.
5.Two operation options: square drive for valve key / handwheel on surface. Locking device & position indicator optional.
6.Non-rising stem structure, compact installation space.
Specifications:
Operation type:Manual-Handwheel
Size: DN40-DN600
Pressure: PN10/16, Class150,JIS6K/10K
Design Standard:DIN3352,BS5150,EN593, API609
Face to Face Standard: API609,BS5150,DIN3202 F4/F5
Flange Standard:BS4540,DIN2532/2533,ANSI B16.10
Test Standard: BS10 Table D and E EN 12266-1, API 598
Materials:
Body : Ductile Iron
Wedge:Ductile Iron+EPDM
Stem : Stainless Steel
Handwheel :Cast Iron
No. | Part Name | Material |
1 | Body | Ductile Iron/Cast Iron |
2 | Wedge skeleton | Ductile Iron/Cast Iron |
3 | Resilient Wedge | Ductile Iron/Cast Iron+NBR/EPDM |
4 | Stem | WCB/SS420 /SS416 |
6 | Operated | Hand Lever | Worm Gear | Pneumatic | Electrical |
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-0~80℃
Nominal Pressure (Mpa) | 1.0 | 1.6 |
Nominal Diameter(mm) | 50-1000 | 50-1000 |
Test Pressure | Shell | 1.5 | 2.4 |
(Mpa) | Seal | 1.1 | 1.76 |
Applicable temperature | 0-80°C |
Applicable medium | Water, Sewage, Sea water |
