Product Introduction:
Model: Z40X-16Q

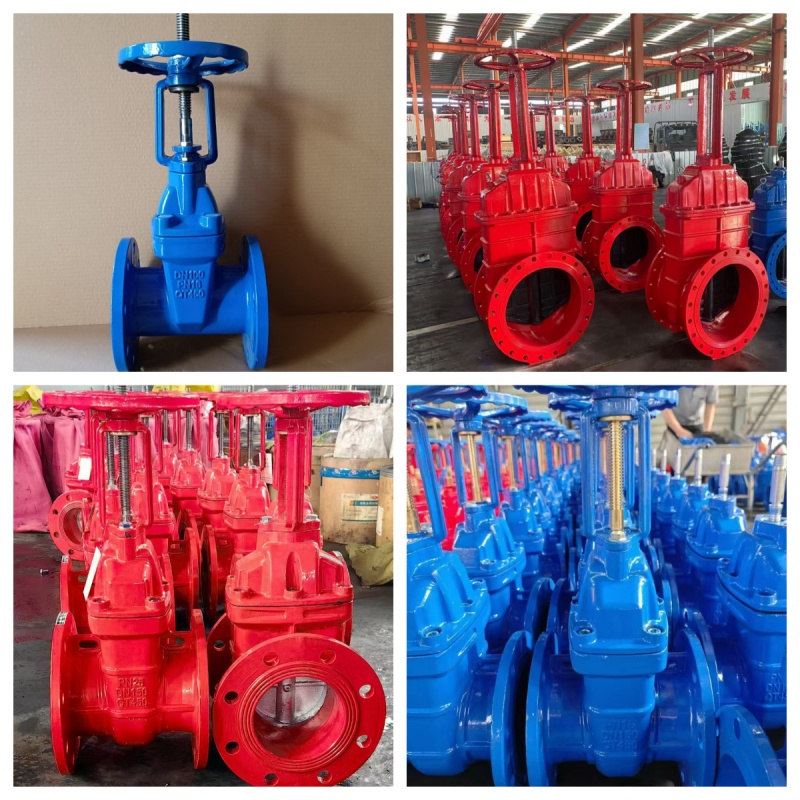

Rising stem resilient seated gate valve is equipped with exposed stem.
The stem moves upward and downward together with the wedge during operation.
Users can directly judge the opening status by observing the stem height.
It is widely installed in pump rooms, above-ground water supply, fire protection and sewage pipelines.
Features:
1.Ductile iron QT450 body with epoxy coating, corrosion resistance for potable water.
2.EPDM fully coated wedge, bi-directional tight shut-off, zero leakage.
3.Rising stem design, visible valve position without indicator.
4.Full bore structure, low flow resistance, suitable for pipeline pigging.
5.Stem material: 2Cr13 stainless steel.
6.Optional electric actuator to become automatic valve Model Z940X.
Specifications:
Operation type:Manual-Handwheel
Size: DN50-DN1000
Pressure: PN10/16, Class150,JIS6K/10K
Design Standard:DIN3352,BS5150,EN593, API609
Face to Face Standard: API609,BS5150,DIN3202 F4/F5
Flange Standard:BS4540,DIN2532/2533,ANSI B16.10
Test Standard: BS10 Table D and E EN 12266-1, API 598
Materials:
Body : Ductile Iron
Wedge:Ductile Iron+EPDM
Stem : Stainless Steel
Handwheel :Cast Iron
No. | Part Name | Material |
1 | Body | Ductile Iron/Cast Iron |
2 | Wedge skeleton | Ductile Iron/Cast Iron |
3 | Resilient Wedge | Ductile Iron/Cast Iron+NBR/EPDM |
4 | Stem | WCB/SS420 /SS416 |
6 | Operated | Hand Lever | Worm Gear | Pneumatic | Electrical |
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:0~80℃
Nominal Pressure (Mpa) | 1.0 | 1.6 |
Nominal Diameter(mm) | 50-1000 | 50-1000 |
Test Pressure | Shell | 1.5 | 2.4 |
(Mpa) | Seal | 1.1 | 1.76 |
Applicable temperature | 0-80°C |
Applicable medium | Water, Sewage, Sea water |
