Product Introduction:
Z41H is rising stem wedge single disc metal seated gate valve with WCB carbon steel body.
The sealing surface is overlayed with Cr13 alloy, featuring high temperature resistance and wear resistance.
It is widely used for steam, thermal oil and petroleum pipelines for isolation service.
Features
1.Body material: WCB carbon steel, suitable for high temperature & medium pressure service.
2.Hard alloy surfacing sealing face, anti-abrasion, long service life.
3.Rising stem design, visible opening position.
4.Back seat design allows packing replacement under working pressure.
5.Full bore structure, low flow resistance, bidirectional flow.
6.Optional operation: handwheel, bevel gear, electric actuator.
Specifications:
Operation type:Manual - Handwheel
Size: DN15-DN1000
Pressure: PN10/16/25/40/64，Class150/300/600
Standard:ANSI, EN593,DIN 2501,DIN3202,BS51653,GOST
Materials:
Body : WCB/CF3/CF3M/CF8/CF8M
Wedge: WCB/CF3/CF3M/CF8/CF8M
Gland:WCB/CF3/CF3M/CF8/CF8M
Seat Ring : 2Cr13/WCB/CF3/CF3M/CF8/CF8M
Stem : Stainless Steel
Packing:Flexible Graphite/PTFE
Handwheel :Cast Iron
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-25~425℃

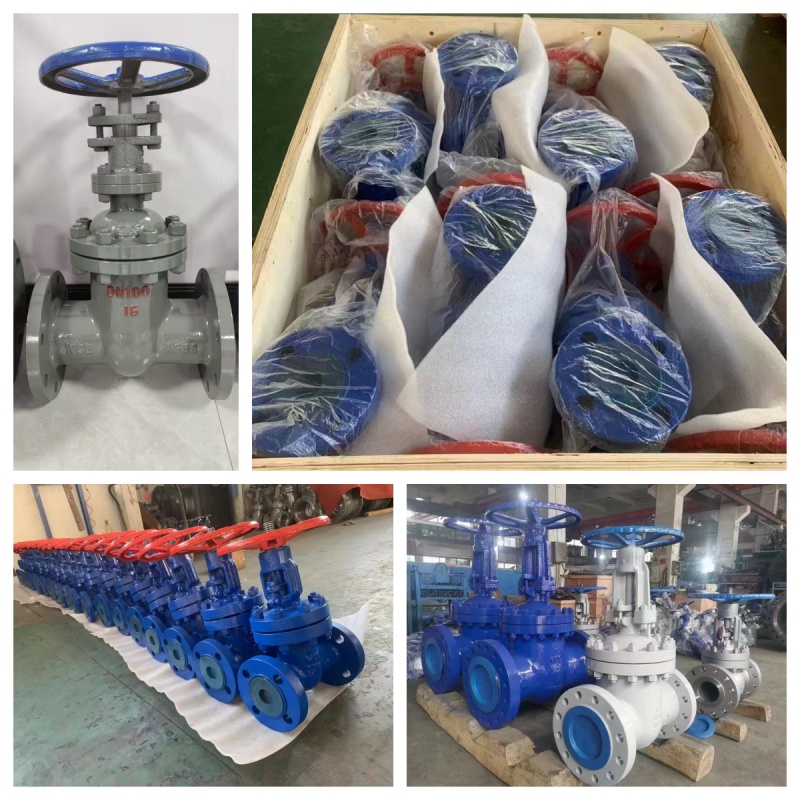

All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
