Product Introduction:

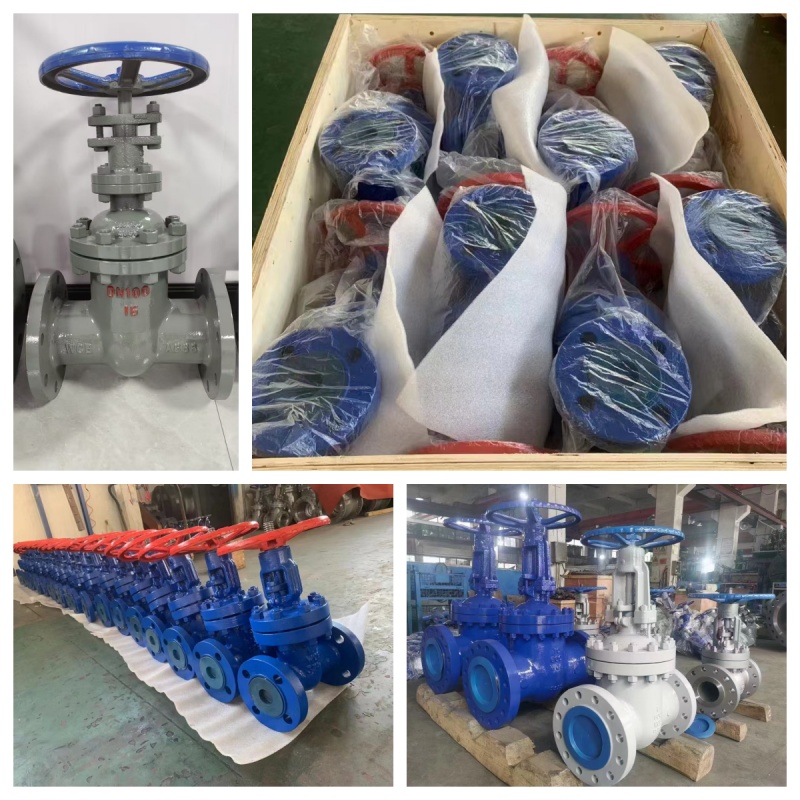

Metal Seat gate valve is a shut-off valve used for fully opening or closing pipelines; it cannot be used for regulation or throttling.

Its sealing pair consists of two metal materials and features high temperature and pressure resistance, wear resistance, and a long service life.

Metal Seat gate valves are suitable for various industries such as petrochemicals, power generation, mining and metallurgy, and municipal water supply and drainage.

They can handle media including water, steam, oil, and slurries containing solid particles.

Features:

1.Metal hard sealing surface, working temperature up to 425℃, suitable for steam, hot oil.

2.Stainless steel construction, anti-corrosion for weak acid, seawater and sanitary medium.

3.Rising stem design, visible valve opening position.

4.Full bore straight channel, minimum flow resistance, bi-directional flow.

5.Optional operation: handwheel, bevel gear, electric actuator.

Specifications:

Operation type:Manual - Handwheel

Size: DN15-DN1000

Pressure: PN10/16/25/40/64，Class150/300/600

Standard:ANSI, EN593,DIN 2501,DIN3202,BS51653,GOST

Materials:

Body : WCB/CF3/CF3M/CF8/CF8M

Wedge: WCB/CF3/CF3M/CF8/CF8M

Gland:WCB/CF3/CF3M/CF8/CF8M

Seat Ring : 2Cr13/WCB/CF3/CF3M/CF8/CF8M

Stem : Stainless Steel

Packing:Flexible Graphite/PTFE

Handwheel :Cast Iron

Characteristic:

Applicable Medium: Water, Oil, Gas

Applicable Temperature:-25~425℃

All valves are equipped with professional export protective packaging.

With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.

We can also customize packaging according to customer requirements.

Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.

Common transportation methods include: sea freight, air freight, land freight, and express delivery.
