Product Introduction：

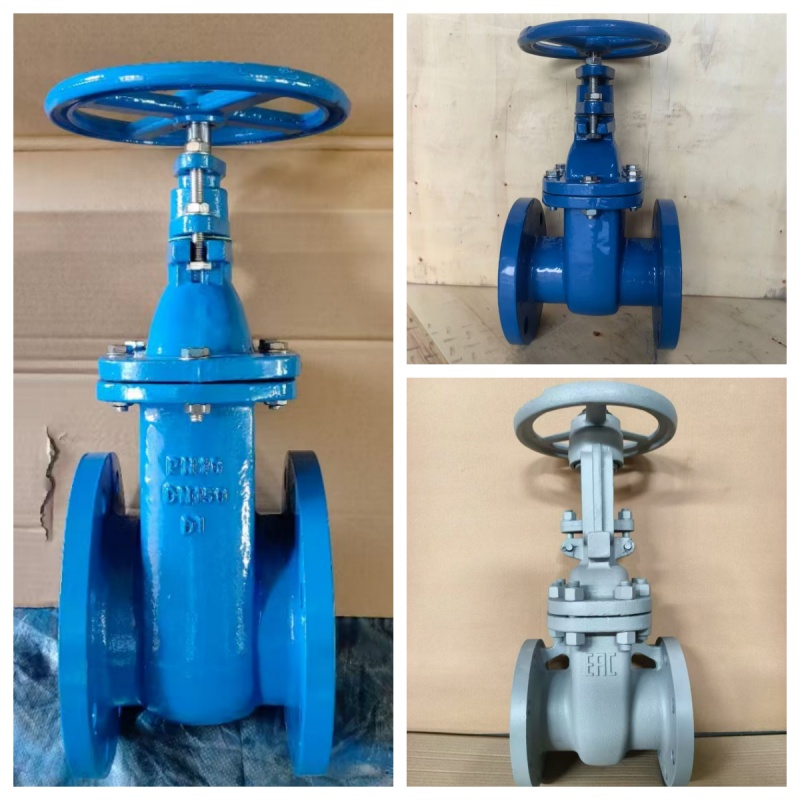

Cast iron gate valves are shut-off valves that use a gate as the opening and closing element.

The gate's movement direction is perpendicular to the fluid, resulting in low flow resistance and allowing bidirectional flow of the medium.

They are relatively tall and have a long opening and closing time.

They are divided into two types: wedge type (including single-gate, double-gate, and resilient-gate types) and parallel-gate type (including single-gate and double-gate types).

Based on the stem structure, they are classified as rising stem gate valves (exposed stem thread for easy lubrication) and non-rising stem gate valves (internal thread, stem only rotates).

Valve body materials include gray cast iron, carbon steel, and stainless steel.

They use flange connections, with nominal diameters ranging from DN40 to DN1200, and are suitable for pipelines in industries such as water, steam, oil, petrochemicals, pharmaceuticals, and power generation.

Features:

1.Bronze trim hard sealing surface, working temperature up to 200℃.

2.Cast iron body, cost-effective for heating and general utility pipelines.

3.Rising stem (Z41T): visible valve position;

   Non-rising stem (Z45T) for limited installation space.

4.Full bore structure, low flow resistance, bi-directional flow.

5.Optional electric actuator for automatic control.

Specifications:

Operation type:Manual-Handwheel

Size: DN50-DN1200

Pressure: PN10/16, Class150,JIS6K/10K

Design Standard:DIN3352,BS5150,EN593, API609

Face to Face Standard: API609,BS5150,DIN3202 F4/F5

Flange Standard:BS4540,DIN2532/2533,ANSI B16.10

Test Standard: BS10 Table D and E  EN 12266-1, API 598

Materials:

Body : Ductile Iron

Wedge:Ductile Iron

Seat Ring:Cast Bronze

Wedge Face Ring:Cast Bronze

Packing Gland:Cast Brass

Stem : Stainless Steel

Handwheel :Cast Iron

Characteristic:

Applicable Medium: Water, Oil, Gas

Applicable Temperature:0~200℃

All valves are equipped with professional export protective packaging.

With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.

We can also customize packaging according to customer requirements.

Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.

Common transportation methods include: sea freight, air freight, land freight, and express delivery.
