Product Introduction：

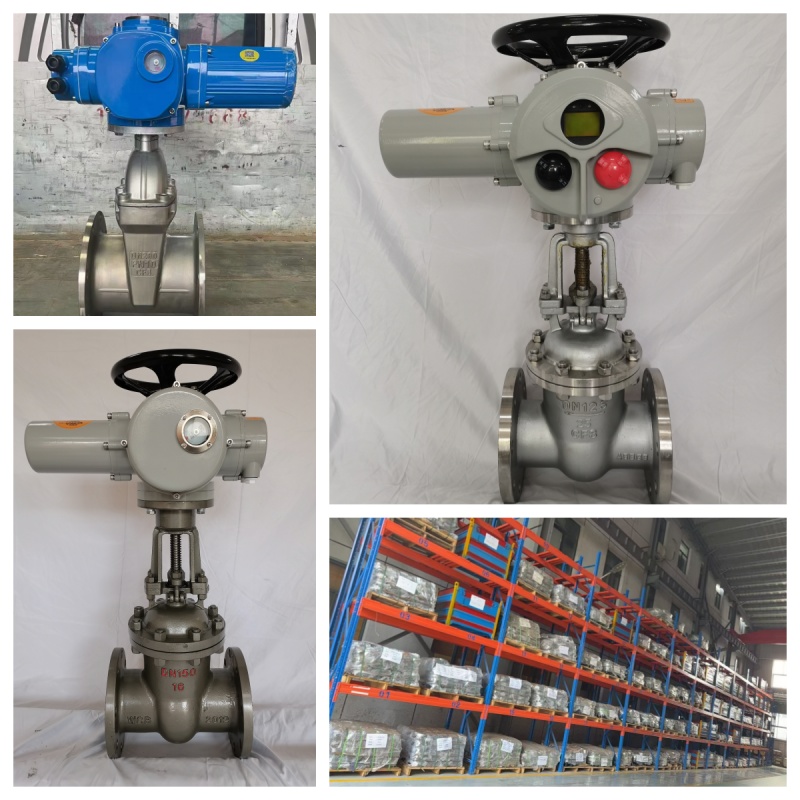

The electric gate valve is a flange-connected, rising stem, wedge-type rigid single-gate valve, belonging to the wedge-type electric gate valve category.

This valve is driven by a Z-type multi-turn actuator and is available in on/off and intelligent types.

It achieves full opening or full closing control of the pipeline medium through the vertical lifting of the gate.

Valve body materials include carbon steel, stainless steel, and alloy steel.

The sealing surface is overlaid with Stellite cobalt-based hard alloy, and the valve stem undergoes tempering and nitriding treatment.

This product is widely used in petroleum, chemical, power, metallurgy, papermaking, wastewater treatment, water conservancy projects, construction, fire protection, and pharmaceutical industries.

Main Features:

1.Stainless steel construction, excellent anti-corrosion performance for seawater, weak acid and sanitary media.

2.Metal hard sealing surface, working temperature up to 425℃, suitable for steam and hot oil.

3.Rising stem design, visible valve position. Full bore design, low flow resistance, bi-directional flow.

4.Electric & manual dual operation: manual override available when power fails.

5.Two control options: On-off type / Modulating type (4-20mA signal).

6.IP65 standard protection; explosion-proof actuator optional for hazardous area.

Specifications:

Operation type:Electric

Size: DN15-DN1200

Pressure: PN10/16/25/40/64，Class150/300/600

Standard:ANSI, EN593,DIN 2501,DIN3202,BS51653,GOST

Materials:

Body : WCB/CF3/CF3M/CF8/CF8M

Wedge: WCB/CF3/CF3M/CF8/CF8M

Gland:WCB/CF3/CF3M/CF8/CF8M

Seat Ring : 2Cr13/WCB/CF3/CF3M/CF8/CF8M

Stem : Stainless Steel

Packing:Flexible Graphite/PTFE

Characteristic:

Applicable Medium: Water, Oil, Gas

Applicable Temperature:-25~425℃

All valves are equipped with professional export protective packaging.

With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.

We can also customize packaging according to customer requirements.

Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.

Common transportation methods include: sea freight, air freight, land freight, and express delivery.
