Product Introduction：

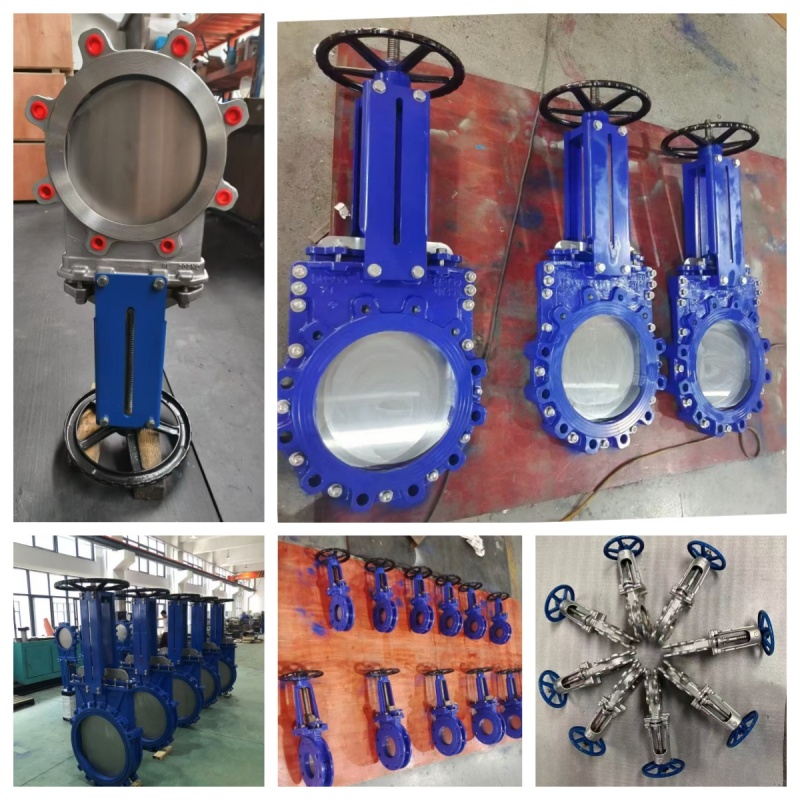

Stainless steel flanged knife gate valve is a rising stem isolation valve with blade-shaped gate.
It features cutting function for fiber, sludge and slurry media, widely used in wastewater, pulp & paper, mining, food and chemical industry.
Features:
1.Stainless steel construction, excellent resistance to corrosion and chloride ion.
2.Blade gate design, self-cleaning & cutting ability to avoid jamming by fibers and sediment.
3.Short face-to-face length, light weight, save installation space.
4.Multiple sealing options: metal hard seal, EPDM soft seal, PTFE seal.
5.Flanged connection for easy installation and maintenance.
6.Available operation: handwheel, pneumatic, electric, hydraulic actuator.
Specifications:
Operation type:Manual -Handwheel
Size: DN50-DN800
Pressure: PN10/16, Class150
Materials:
Body : CF8
Knife:CF8
Seat:CF8
Stem : Stainless Steel
Handwheel :Cast Iron
Characteristic:
Applicable Medium: Sludge, pulp, mine slurry, wastewater, food syrup
Applicable Temperature:-29 ~ 300℃
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
