Specifications:

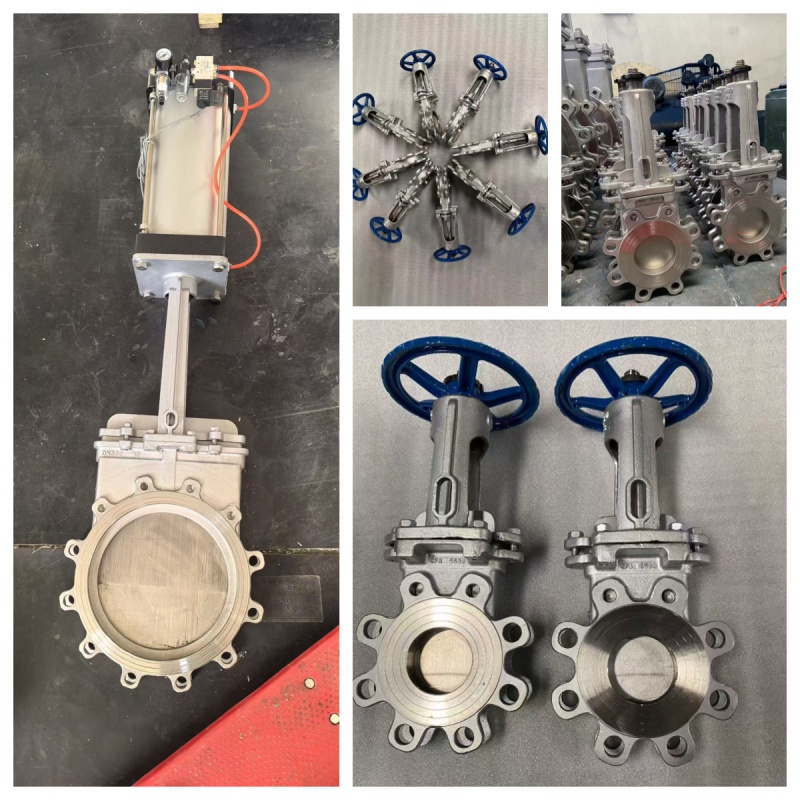

The opening and closing part of the knife gate valve is the gate plate, the direction of motion of the gate plate is perpendicular to the direction of the fluid, and the knife gate valve can only be fully opened and fully closed, and can not be adjusted and throttled.
Most knife gate valves This type of valve should generally be installed horizontally in the pipeline.
Feature:
1.Ultra-short structural length, save materials, can make the overall weight of the pipeline system greatly reduced.
2.Occupy a small effective space, can effectively support the strength of the pipeline, can reduce the possibility of pipeline vibration.
3.The gate adopts austenitic stainless steel, the corrosion resistance is greatly improved, and the sealing leakage caused by the corrosion of the gate can be effectively prevented.
4.The upper sealing filler adopts flexible PTFE, reliable sealing, light and flexible operation.
5.The ram has the function of the knife, which can effectively break all kinds of debris in the medium.
6.Such as the use of hard sealed stainless steel, valve flap spray welding treatment, can be a good extension of the valve on the temperature, pressure requirements.
Specifications:
Operation type:Manual -Handwheel
Size: DN50-DN1200
Pressure: PN10/16, Class150
Design standard | DIN3352 F4/F5, MSS SP-70,AWWA C509/515,BS5163 |
Face to Face | DIN3202 F4/F5, BS5163, ANSI B16.10 |
Flange Drilling | DIN2533 PN10/PN16, ANSI 125/150,JIS10K |
Test Inspection | DIN3230, BS6755 |
Materials:
Body : CF8
Knife:CF8
Seat:CF8
Packing:PTFE
Stem : Stainless Steel
Handwheel :Cast Iron
Body | Cast Iron, Ductile Iron,WCB.SS304,SS316 |
Wedge | Cast Iron, Ductile Iron,WCB.SS304,SS316 |
Stem | Stainless steel,Brass |
Sealing Ring | EPDM,NBR,WCB.SS304,SS316 |
Characteristic:
Applicable Medium: Water, Oil,,Pulp,Slurry
Applicable Temperature:-29~300℃
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
