Product Introduction:

The soft-seal double-plate check valve is an automatic one-way valve.

It relies on the pressure of the medium itself and an internal torsion spring to open and close.

Its core function is to prevent backflow of the medium in the pipeline, protect downstream equipment such as water pumps, compressors, and heat exchangers, and mitigate water hammer impact.

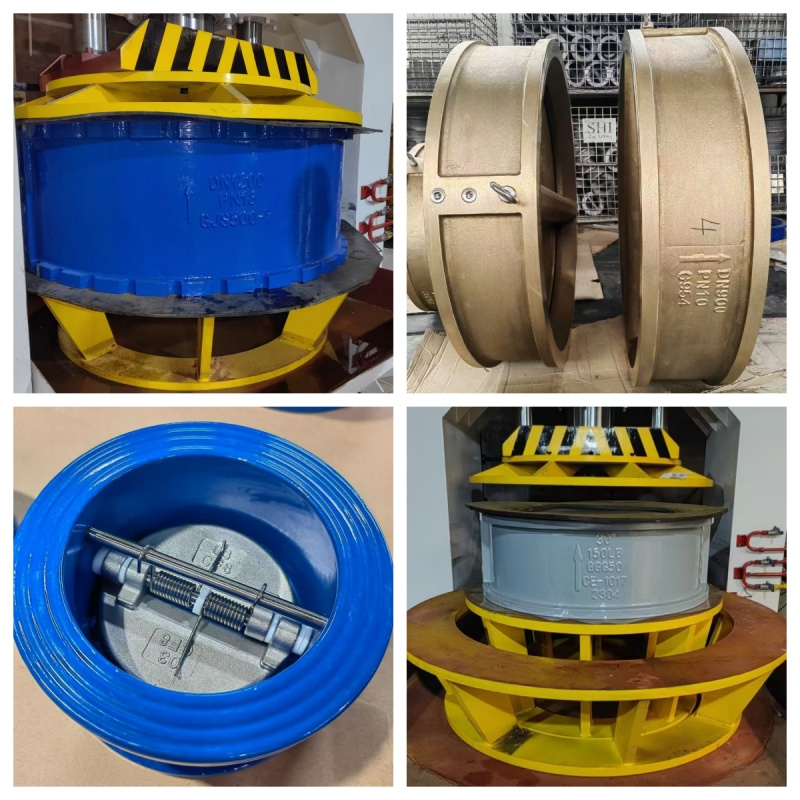

The valve consists of a valve body, a central pin, two symmetrical semi-circular valve discs, a return spring, and a rubber soft-seal valve seat.

The mainstream connection is a wafer type, but a lug flange structure is also available.

It is a mainstream lightweight check valve choice for water supply and drainage, HVAC, chemical, shipbuilding, and power plant pipeline networks.

Features:
1. Small compact, easy in maintenance
2. Quick-close action
3. Easy instalation, it can be installed on horizontal and vertical both directions pipes
4. The valve is tightly sealed, no leakage
5. Safe and reliable in operation, high interference-resistance

Specifications:

Size: DN50-DN1200

Pressure: PN10/16, Class150,JIS6K/10K

Standard:DIN 2501,BS5155,ANSI B16.10

Materials:

Body : Ductile Iron

Disc: Ductile Iron+Ni

Seal : EPDM/NBR

Stem : Stainless Steel

Spring:Stainless Steel

Characteristic:

Applicable medium：Water, Oil, Gas

Applicable Temperature:-10~800℃

All valves are equipped with professional export protective packaging.

With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.

We can also customize packaging according to customer requirements.

Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.

Common transportation methods include: sea freight, air freight, land freight, and express delivery.
