Product Introduction:

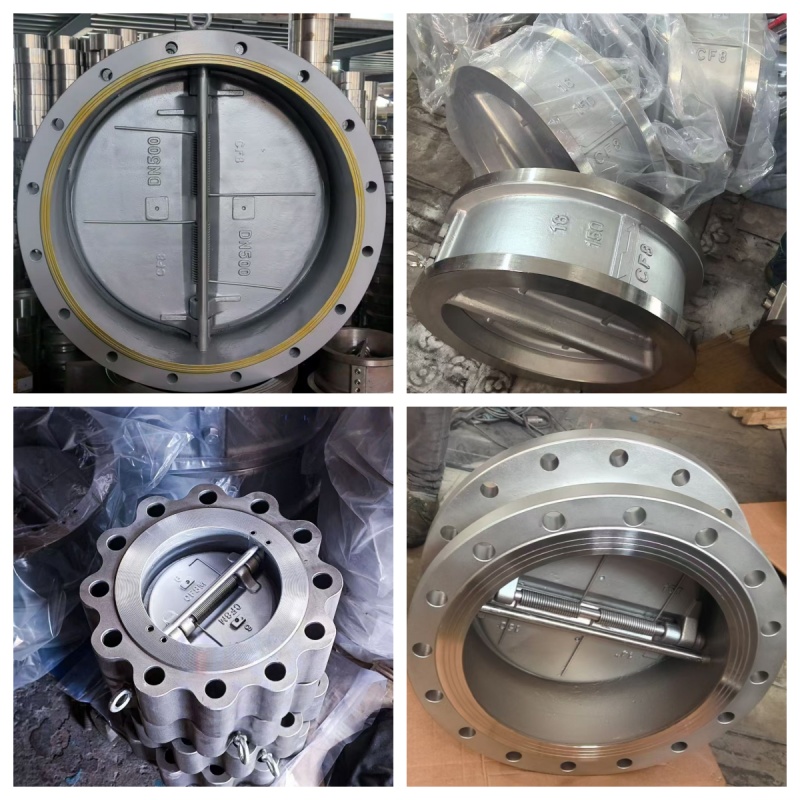

Flanged Dual Plate Check Valve.
Flanged dual plate check valve is spring loaded double disc non-return valve with integrally cast flanged ends for rigid pipeline connection.
It closes rapidly by torsion spring to prevent medium backflow, effectively reduce water hammer and pipeline vibration.
Advantages:
Solid flanged connection for high pressure & buried pipeline installation.
Low flow resistance.
Compact structure.
Bidirectional installation (horizontal & vertical).
Easy on-site maintenance of spring and sealing parts.
Application:
Water supply pump outlet, fire protection, power plant, chemical industry, marine seawater pipeline, buried municipal pipeline to protect pump and pipeline system.
Specifications:
Size: DN50-DN1200
Pressure: PN10/16, Class150,JIS6K/10K
Standard:DIN 2501,BS5155,ANSI B16.10
Materials:
Body : WCB
Disc:CF8
Seal : WCB
Stem : Stainless Steel
Spring:Stainless Steel
Characteristic:
Applicable medium：Water, Oil, Gas
Applicable Temperature:-40~425℃
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
