Product Introduction：

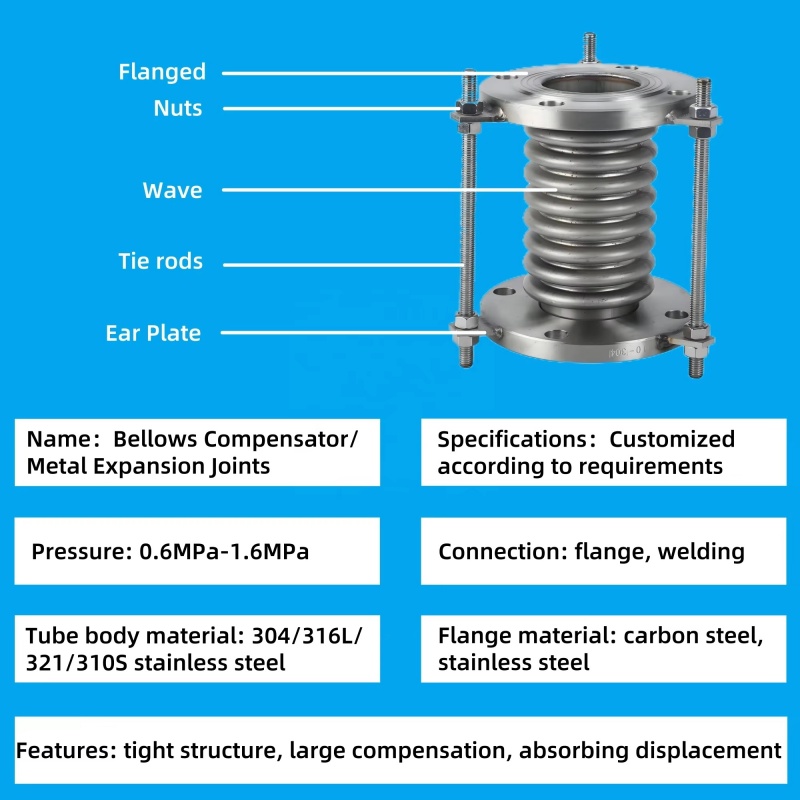

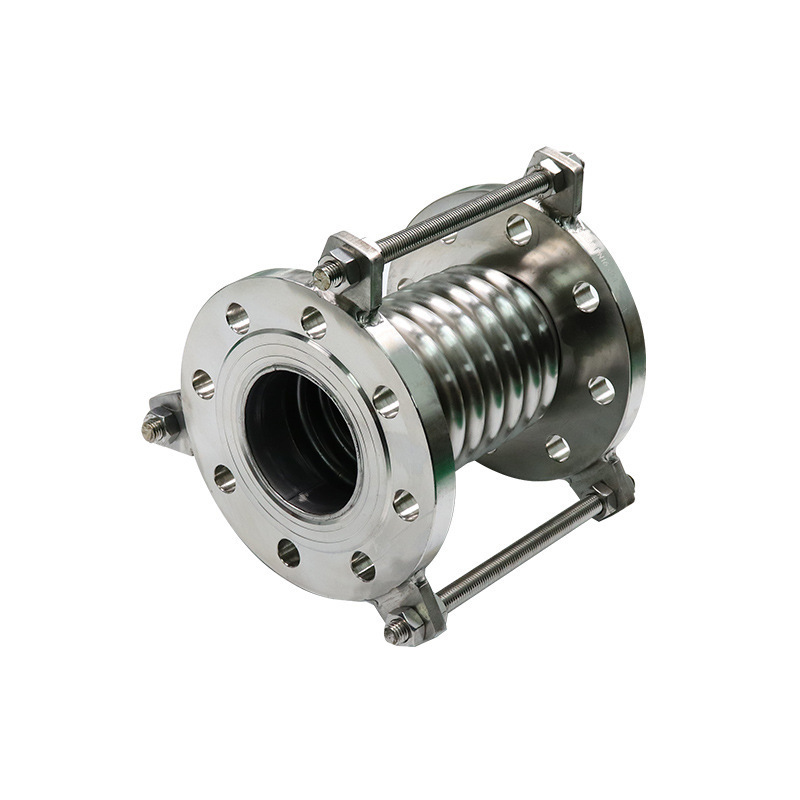

A bellows compensator, also known as an expansion joint or telescoping joint, is a compensating element that uses the elastic deformation of a bellows to compensate for thermal displacement, mechanical deformation, and absorb vibration in pipelines. It consists of components such as bellows, end pipes, and flanges, and is made of stainless steel, featuring corrosion resistance and a long service life. By absorbing the thermal expansion and contraction stress of pipelines and compensating for axial/lateral/angular displacements, it is widely used in industrial pipeline systems in petrochemical, power, and metallurgical industries.

Common Materials and Operating Conditions Compatibility ：

304 Stainless Steel: Suitable for cold water, ambient temperature gases, general water supply and drainage, ventilation ducts—corrosion-resistant and widely used;

316L Stainless Steel: Ideal for weak acids and alkalis in chemical processing, seawater, and food/pharmaceutical pipelines—offers superior corrosion resistance;

Standard Pressure Ratings: 1.0 MPa, 1.6 MPa (main pressure levels for industrial piping);

Operating Temperature: -80°C to 450°C, suitable for high-temperature thermal networks.

Typical Application：

District heating pipelines, chemical plant process lines, central air conditioning chilled water systems, boiler steam lines,

wastewater treatment pipelines, vibration isolation at pump station inlets and outlets, stainless steel pipelines for food and pharmaceutical industries.

Specifications:

Size: DN50-DN2000

Pressure: PN10/16/25/40/64, Class150/300,JIS6K/10K

Flange Standard:DIN,BS,ISO,ANSI,AS,JIS

Materials:

Flange :Stainless Steel

Bellows:Stainless Steel

Stud/Bolt:Stainless Steel

Characteristic:

Applicable Medium: Water, Steam, Oil, Gas, Acid, Alkali, etc.

Applicable Temperature:-196°C to +600°C

All valves are equipped with professional export protective packaging.

With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.

We can also customize packaging according to customer requirements.

Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.

Common transportation methods include: sea freight, air freight, land freight, and express delivery.
