Product Description:

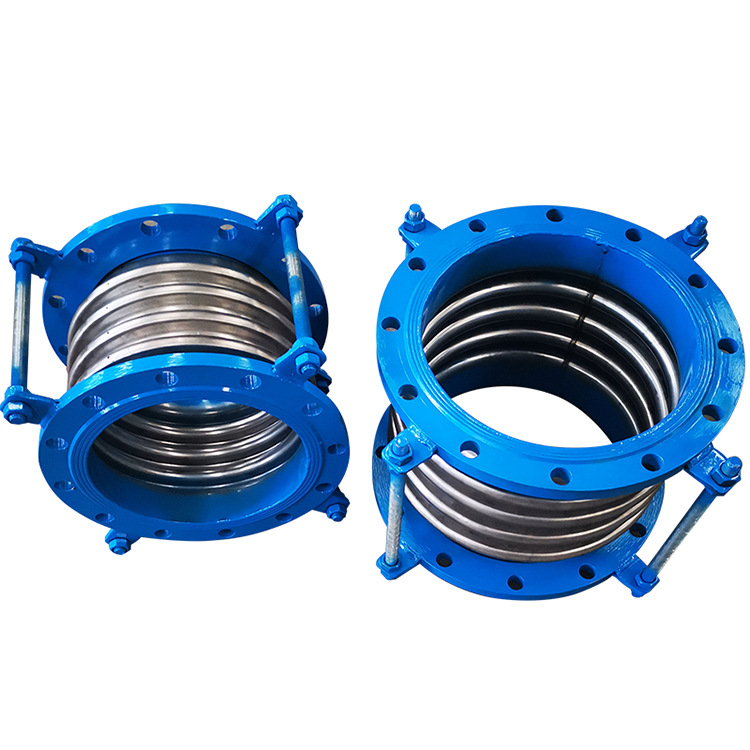

Bellows compensator, also known as expansion joint, or telescopic joint.
It consists of a bellows (an elastic element) that constitutes its working body and accessories such as end pipes, brackets, flanges, and conduits.
It is mainly used in various pipelines. It can compensate for the thermal displacement and mechanical deformation of the pipeline and absorb various mechanical vibrations, thereby reducing the deformation stress of the pipeline and increasing the service life of the pipeline. The connection methods of bellows compensator are flange connection and welding. Direct buried pipeline compensators are generally welded.
advantage:
1. High reliability
The bellows compensator is a compensating part made of bellows, which has high reliability.
2. Corrosion resistance
The bellows compensator is made of materials such as stainless steel, non-ferrous metals and rubber, and can resist the erosion of most corrosive substances.
3. Easy maintenance
The bellows compensator is very easy to maintain. Due to its simple structure, the compensator can be easily disassembled by removing a small number of bolts, which is convenient for maintenance and replacement.
4. Strong adjustment ability
The bellows compensator can be flexibly adjusted according to the needs of the pipeline system. By adjusting the length of the bellows and the number of peaks and troughs, it can well adapt to the expansion and contraction deformation of the pipeline system under different conditions.
Specifications:
Size: DN50-DN2000
Pressure: PN10/16/25/40/64, Class150/300,JIS6K/10K
Flange Standard:DIN,BS,ISO,ANSI,AS,JIS
Materials:
Flange : WCB
Bellows:Stainless Steel
Stud/Bolt:WCB
Characteristic:
Applicable Medium: Water, Steam, Oil, Gas, Acid, Alkali, etc.
Applicable Temperature:-20°C to +300°C
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
