Product Introduction：
Y-type filters have effectively treated large quantities of domestic and industrial wastewater across various industries, enabling the efficient reuse of precious water resources and contributing significantly to water conservation. The advantages of Y-type filters include full automation, maintenance-free operation, large filtration area, high filter efficiency, long service life, stainless steel construction, selectable filtration precision, and a complete range of specifications. Compared to other filtration equipment, it is one of the most effective devices in greywater reuse projects. Furthermore, water treated by Y-type filters not only meets national discharge standards but also achieves the goal of water reuse and recycling.
Features:

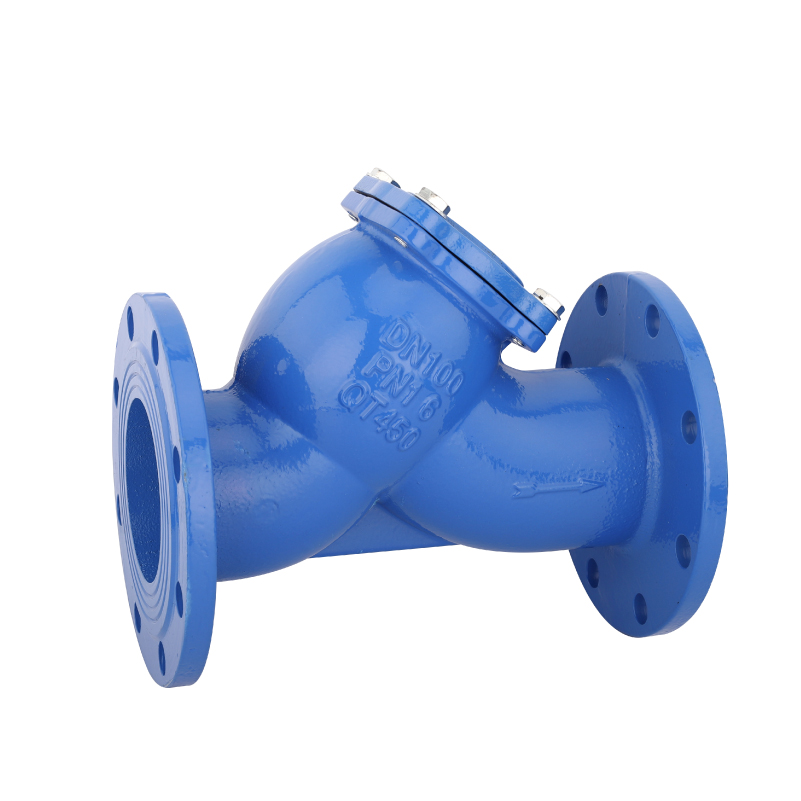

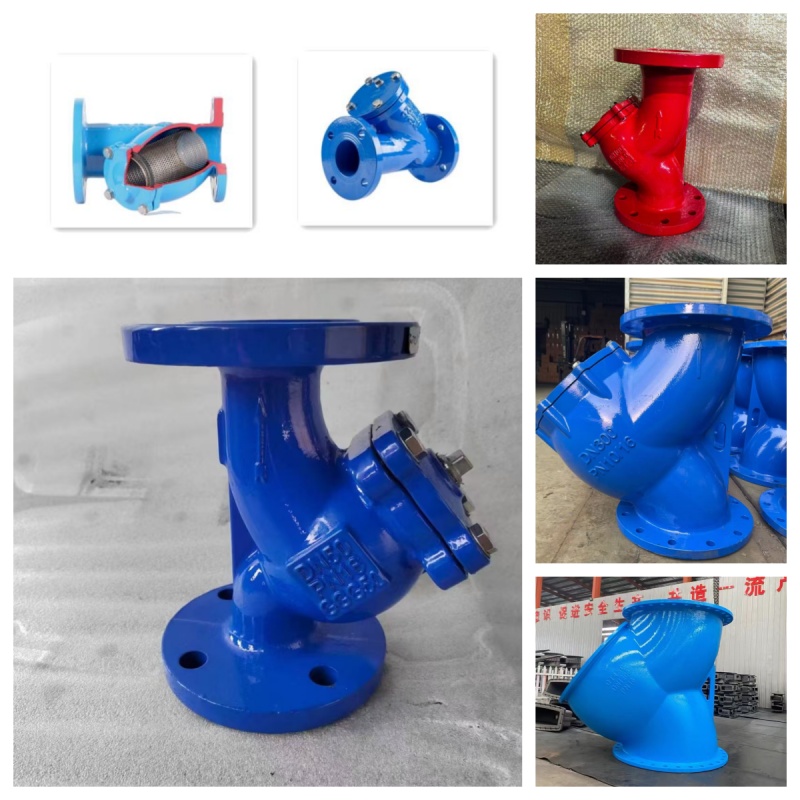

1.Y-shaped body design, low flow resistance, large dirt holding capacity;
2.Quick disassembly bottom cover for easy screen cleaning & maintenance;
3.Multiple body materials: cast iron, carbon steel WCB, SS304, SS316L, lined PTFE for corrosive service;
4.Connection: flange, thread, butt weld; Pressure: PN10/PN16/PN25, Class150/300;
5.Applicable medium: water, steam, oil, gas, seawater, weak acid & alkali liquid.Application: Heating system, water supply, chemical industry, central air conditioning, food & pharmaceutical pipeline, power plant.
Specifications:
Operation type:Manual-Lever
Size: DN50-DN1200
Pressure: PN10/16, Class150,JIS6K/10K
Standard:ANSI,DIN3502
Materials:
Body : Ductile Iron
Screen: Stainless Steel
Bolt/Nut:WCB/Stainless Steel
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-10~80℃
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
