Product Introduction：

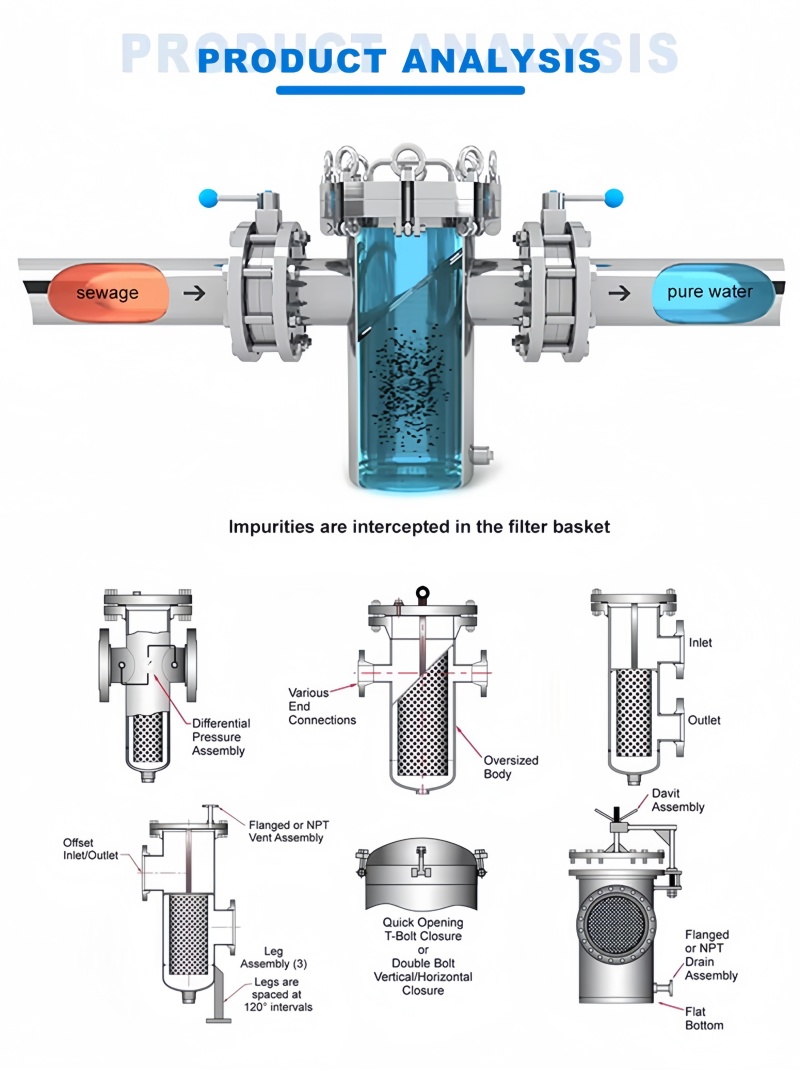

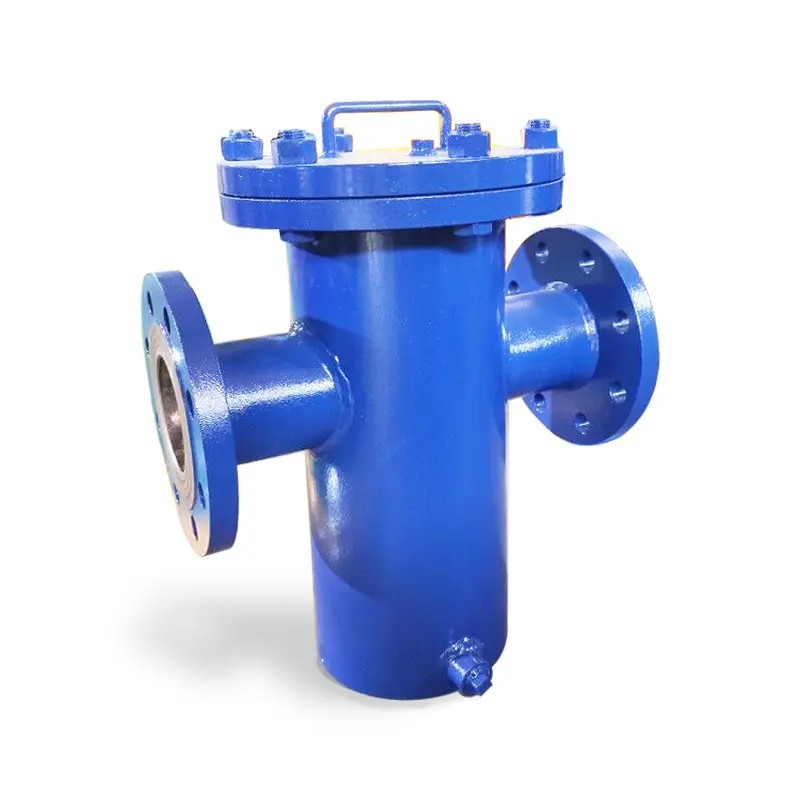

Basket filters are used in oil or other liquid pipelines to filter out impurities. The filter pore area is 2-3 times larger than the pipe diameter, far exceeding the filtration area of Y-type and T-type filters. They offer among the highest precision filters available. Their filter screen structure differs from other filters; they are named for their basket-like shape.
Features:
1. Standard stainless steel filter screen, pore size Φ3～6, number of pores selectable;
2. Optional pressure gauge connection; threaded holes are drilled on the convex surface of the cover for pressure gauge installation;
3. Large flow area, resulting in low pressure loss.
Specifications:
Operation type:Manual-Lever
Size: DN50-DN1200
Pressure: PN10/16, Class150,JIS6K/10K
Standard:ANSI,DIN3502
Materials:
Body : WCB/Stainless Steel
Screen: Stainless Steel
Bolt/Nut:WCB/Stainless Steel
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-29~425℃
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
