Product Introduction：

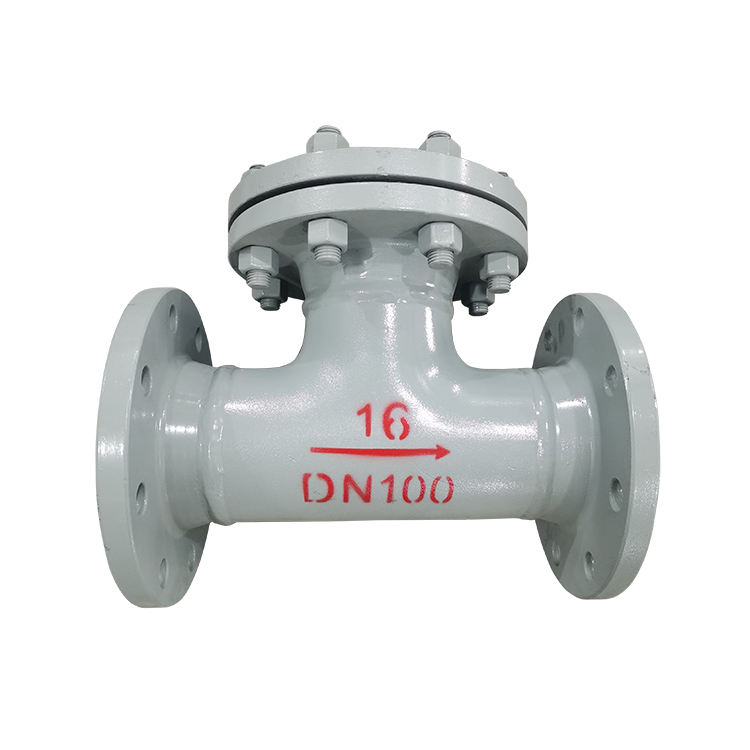

T-type strainer (Tee strainer) is a heavy-duty pipeline coarse filter with T-shaped tee body, divided into straight-through, forward baffled and reverse baffled types. It is widely installed to remove welding slag, rust, gravel and solid particles to protect pumps, compressors, control valves, flow meters and heat exchangers.

Features:

1.High pressure resistance: forged body for Class150~Class2500 high-pressure service for power & oil&gas industry;

2.Dual installation solution: straight-through for straight pipe, baffled type directly replace 90° elbow to save pipe fittings;

3.Convenient maintenance: horizontal mounting with top cover opening, no large liquid spillage during cleaning;

4.Material customization: Carbon steel WCB, SS304, SS316L, alloy steel, PTFE lining available;5.

5.Connection: Flange, butt weld, thread; Filtration mesh: 10~200 mesh customizable.Application: Power plant steam pipeline, petrochemical pipeline, thermal heating, marine pipeline, compressed gas & oil transmission system.

Specifications:

Operation type:Manual-Lever

Size: DN50-DN1200

Pressure: PN10/16, Class150,JIS6K/10K

Standard:ANSI,DIN3502

Materials:

Body : WCB/Stainless Steel

Screen: Stainless Steel

Bolt/Nut:WCB/Stainless Steel

Characteristic:

Applicable Medium: Water, Oil, Gas

Applicable Temperature:-29~425℃

All valves are equipped with professional export protective packaging.

With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.

We can also customize packaging according to customer requirements.

Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.

Common transportation methods include: sea freight, air freight, land freight, and express delivery.
