Product Introduction:

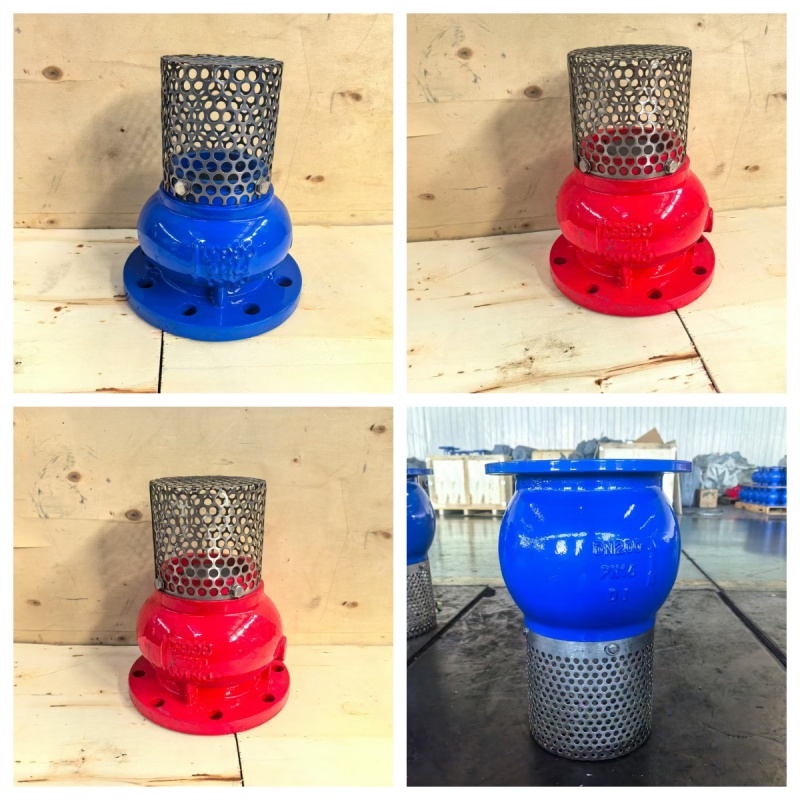

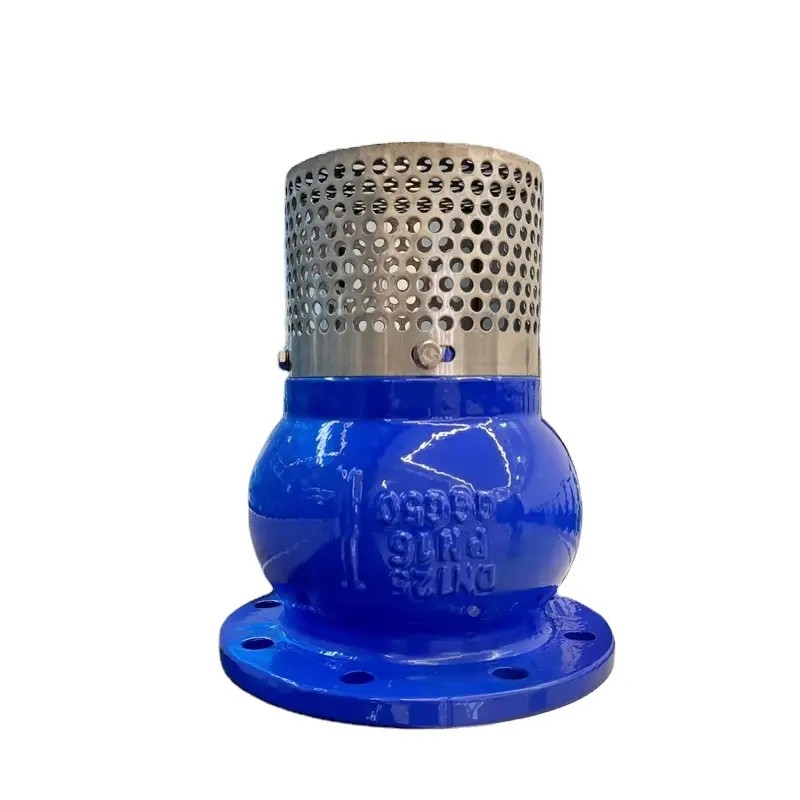

Foot valve is a special lift check valve installed at the bottom of pump suction pipe, combining one-way backflow prevention and integrated strainer filtration.
It keeps liquid inside suction pipeline after pump shutdown, so centrifugal pump can start directly without repeated priming, and the bottom basket strainer blocks gravel, weeds and sediment to protect pump impeller and mechanical seal.
Main Types: Flanged foot valve, threaded foot valve, stainless steel foot valve, plastic PVC foot valve.
Material Options: Cast iron, ductile iron, SS304/SS316L, UPVC, bronze.
Pressure: PN6 / PN10 / PN16;
Size: DN25-DN600 customizable.
Features:
1.Gravity-driven disc, fast shut-off for good water sealing;
2.Detachable strainer cover for easy impurity cleaning;
3.Simple structure, long service life under submersible muddy water condition;
4.Low flow resistance, stable water intake performance.
Application:
Water supply pump station, agricultural irrigation, river water intake, marine pump, sewage lift pump, tank truck emergency bottom discharge valve.
We provide customized size, mesh size and sealing material, 12-month quality warranty for global water projects.
Specifications:
Size: DN50-DN600
Pressure: PN10/16/25/40/64, Class150/300/600,JIS5K/10K
Face to Face Standard: API 594, API 6D,ANSI B16.10, DIN 3202,BS5153
Materials:
Body :Ductile Iron/WCB/Stainless Steel
Screen:Stainless Steel
Disc:Ductile Iron+Rubber/WCB/Stainless Steel
Stem:Stainless Steel
Name | Material |
Body | DI, WCB, SS316, SS304 |
Stem | 2cCr13, WCB,SS304, SS316 |
Gasket | Stainless Steel, 2Cr13, NBR, STL |
Disc | WCB,CF8, CF8M, ,EPDM, NBR,EPDM |
O-Ring | NBR, EPDM |
Bonnet | Ductile Iron QT450-10, ASTM-A-536, GGG500-7 |
Characteristic:
Applicable medium：Water
Applicable Temperature:-20~150℃
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
