Product Introduction:

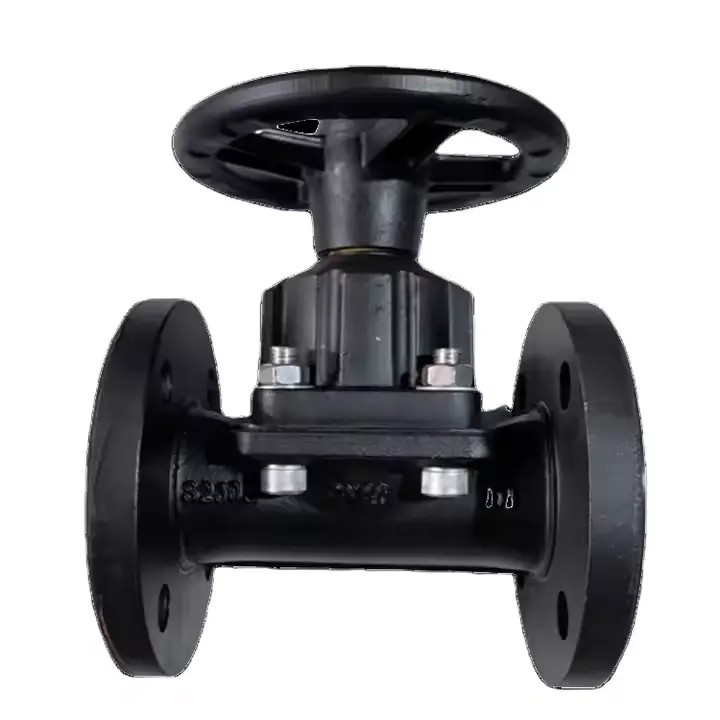

Diaphragm valve uses elastic diaphragm as sealing element to isolate medium from upper actuator completely, zero stem leakage.

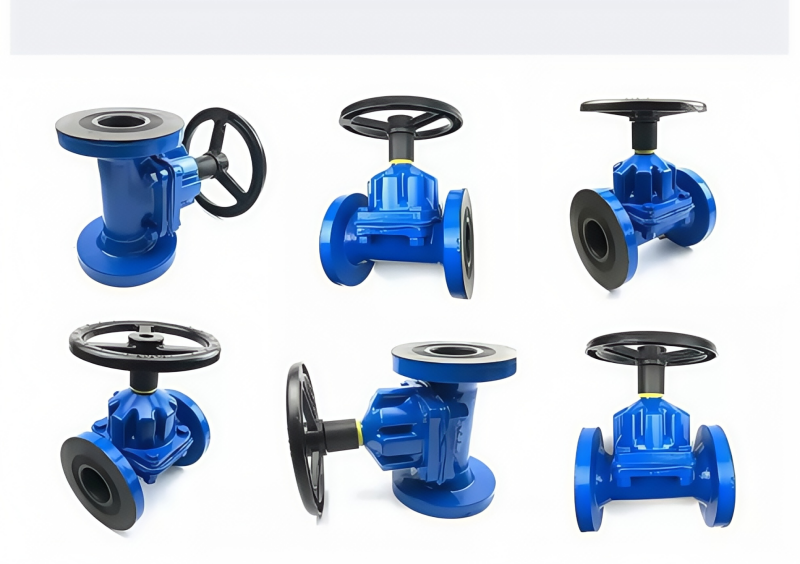

Main types: weir type, straight through type, angle type, lined rubber / PTFE lined body for anti-corrosion service, manual/pneumatic/electric drive available.
Body Lining: Rubber lining, F46/PFA lining, SS316L sanitary body.
Diaphragm Material: EPDM, NR, PFA, Silicone
Pressure & Size: PN6/PN10, DN15-DN300
Features:
Zero external leakage, safe for toxic & corrosive chemical fluid;
Smooth cavity without dead zone, suitable for CIP/SIP sterilization for food & pharmacy;
Good adaptability for slurry, sludge and particle-containing medium;
Only diaphragm is wearing part, low maintenance cost.
Application: Chemical acid & alkali pipeline, power plant desulfurization, pharmaceutical purified water, food beverage industry, wastewater treatment, tank bottom discharge.
Core technical parameters:
1. Nominal diameter: DN15 to DN300.
2. Nominal pressure: Commonly PN6, PN10, maximum PN16. Not suitable for high pressure above PN25.
3. Connection type: Flange, internal thread, quick-connect clamp (hygienic grade specific).
4. Applicable temperature: Dependent on the diaphragm material -40℃ to 150℃.
5. Sealing performance: Soft seal, bubble seal, no external leakage of valve stem.
6. Air source pressure (pneumatic model): 0.4 to 0.6 MPa compressed air.
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
