Products Introduction:

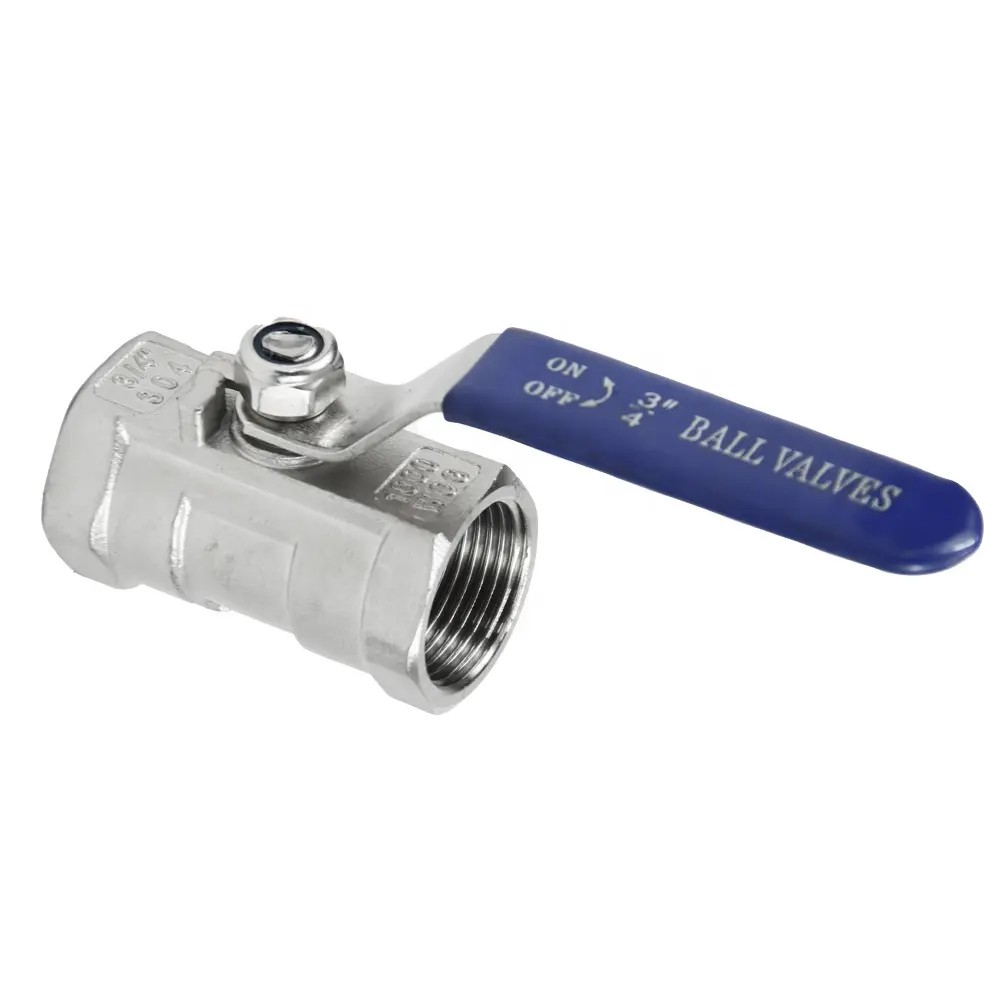

One-piece ball valve adopts integral forged one-piece body structure, compact size, low cost, mainly female thread connection for small-bore pipeline isolation.
It is reduced bore design, operated by 90° manual handle for full open / full close cut-off only.
Material: Stainless steel 304/201, Brass, Carbon Steel
Connection: BSPP / NPT female thread
Pressure: PN16, Size: DN6-DN50
Seat: PTFE soft seal
Features:
1.Ultra-low cost for OEM equipment matching;
2.Compact structure, no body joint leakage risk;
3.Simple thread installation for narrow space piping.
Application: Air compressor, hydraulic unit, water heater, instrument air pipeline, small gas branch, laboratory piping.
Core technical parameters:
1. Nominal diameter: DN6 to DN50.
2. Nominal pressure: PN16 is the main type, with a maximum of PN25. Not suitable for high-pressure conditions of PN40 or above.
3. Connection threads: G pipe thread, BSP, NPT American taper thread.
4. Applicable temperature: -20℃ to 160℃ (Teflon seal)2
5. Diameter characteristics: Reduced diameter structure, flow resistance is greater than that of two-piece and three-piece ball valves2
6. Leakage grade: Soft seal VI level zero leakage.
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
