Product Description:

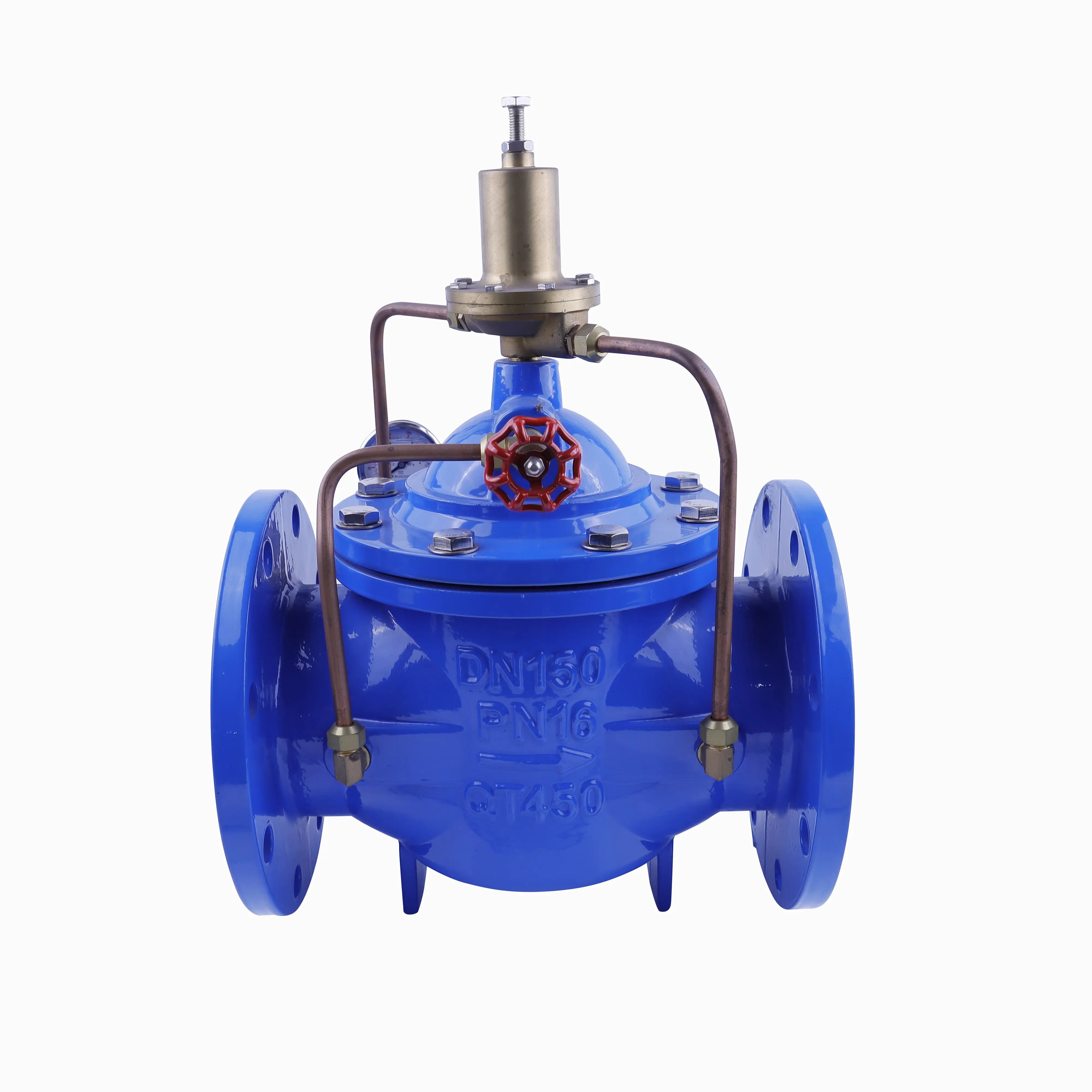

The 200X adjustable pressure reducing valve is a functional valve that utilizes the energy of the medium itself to regulate and control pipeline pressure.
The 200X adjustable pressure reducing valve is used for domestic water supply, fire water supply, and other industrial water supply systems.
By adjusting the pressure reducing pilot valve, the outlet pressure of the main valve can be adjusted.
The outlet pressure does not change due to changes in inlet pressure and inlet flow rate, and can be safely and reliably maintained at the set value.
The set value can be adjusted as needed to achieve the purpose of pressure reduction.
The valve has precise pressure reduction, stable performance, safety and reliability, easy installation, and long service life.
Features:
High precision pressure regulation within ±1%~±3% set pressure;
Large flow capacity, suitable for main pipeline high differential pressure decompression;
Stable outlet pressure against inlet pressure & flow fluctuation;
Optional remote control pilot valve for automatic adjustment.Application: Boiler steam pipeline, high-rise building water supply, fire protection pipeline, air compressor station, heating heat exchange station, chemical process piping.
Core Technical Parameters:
1. Nominal diameter: DN15 to DN600.
2. Nominal pressure: PN16/PN25/PN40/PN64; American standard Class150 to Class400.
3. Stabilization accuracy: ±1% to ±3% of set pressure (for direct-acting pressure reducing valves, only ±5% to 10%).
4. Pressure reduction ratio: Maximum 20:1, capable of significantly reducing high pressure.
5. Medium temperature:
Piston-type steam model: -20℃ to 350℃.
Diaphragm water model: 0℃ to 120℃.
6. Leakage grade: Hard seal Class IV, Soft seal bubble-level seal.
7. Installation method: Valve body installed horizontally, valve cover facing upwards, capillary tube straight without bending.
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
