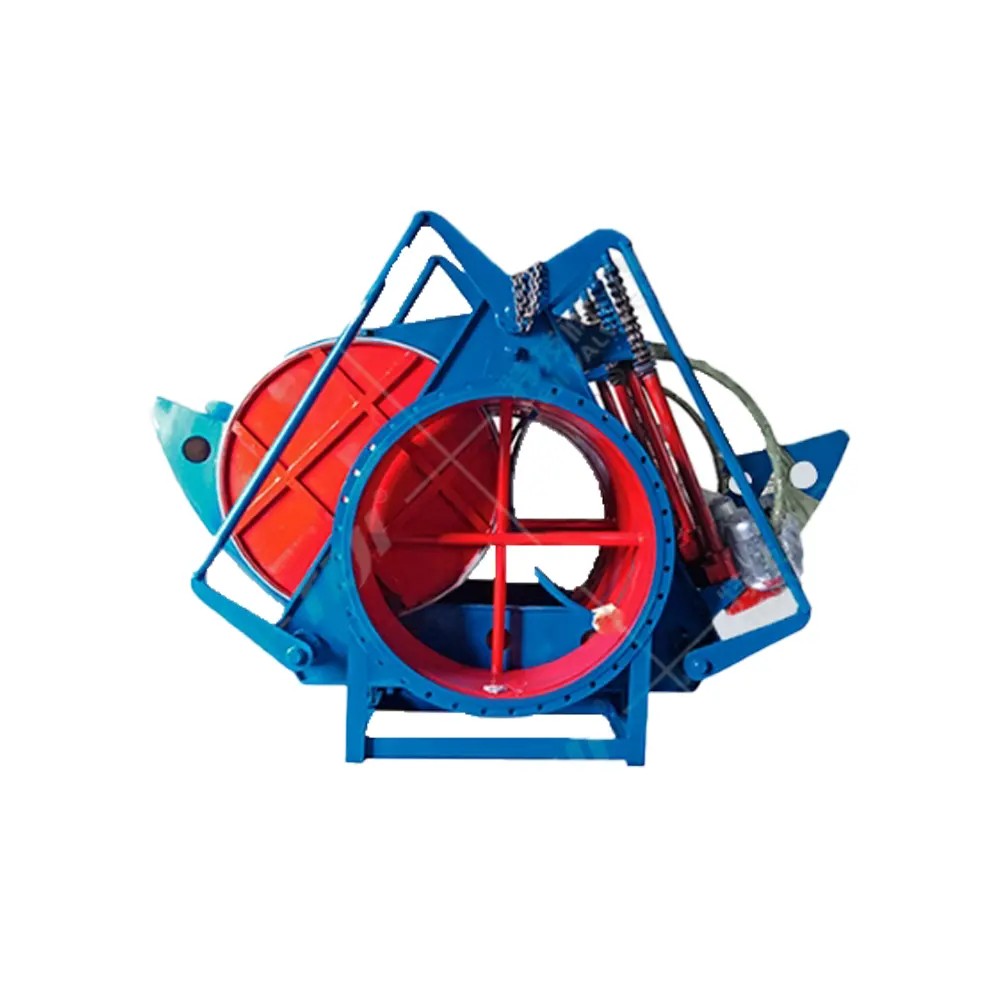

Blind Valve (Glasses Valve) Introduction:
Fan-shaped blind valve (also named spectacle blind valve) is a safety isolation valve for flammable, toxic gas pipeline, designed according to GB6222 safety code for industrial gas.
It adopts three-step operation: loosen the body → rotate spectacle plate → clamp for sealing.
The spectacle plate with solid blind plate and through hole realizes absolute shut-off or full bore flow.
Drive Type: Manual(F43X), Pneumatic(F643X), Electric(F943X), Electro-hydraulic(F743X)
Structure Style: Open type / Closed type
Body Material: Carbon steel, Q235 cast steel
Seal Material: NBR, EPDM, FKM fluoro rubber
Size: DN50-DN2400, Pressure PN0.6/PN1.0/PN1.6
Features:
Zero leakage mechanical isolation for maintenance safety;
Full bore design for low flow resistance;
Built-in expansion joint for pipeline displacement compensation;
Easy seal ring replacement, explosion-proof actuator optional.
Application:
Steel plant blast furnace gas, coking plant coal gas, flue gas desulfurization, chemical toxic gas pipeline, city gas pipe network maintenance isolation.Custom flange standard, explosion-proof configuration and high-temperature sealing available, 18-month quality warranty for overseas industrial projects.
Core Technical Parameters:
Nominal diameter: DN50 to DN2400 (customizable for super-large diameters)
Nominal pressure: PN0.6, PN1.0, PN1.6 (mainly for low-pressure gas pipelines)
Connection type: Flange RF connection
Applicable temperature: -20℃ to 250℃ (adjusted according to the sealing material)
Applicable medium: Blast furnace gas, coke oven gas, converter gas, natural gas, flue gas, chlorine gas, ammonia gas, dust-containing flue gas from dust removal
Sealing performance: Bidirectional rigid tight seal, almost no internal leakage, meeting the safety isolation level of blind plates for maintenance
