Product Introduction：
This pneumatic triplet wafer butterfly valve set includes: a smooth-stem wafer butterfly valve body, a pneumatic actuator, and a three-unit air supply treatment system (F.R.L.). It is often paired with solenoid valves and limit switches to form a complete pneumatic automatic control valve unit.
Powered by compressed air, the air supply is first purified, pressure regulated, and lubricated by the triplet, driving the actuator to rotate 90°, which in turn moves the butterfly plate to cut off the flow of media in the pipeline. A positioner can be added for flow regulation. The wafer-type installation relies on the flanges at both ends of the pipeline to clamp the valve body. It is widely used in automated pipeline systems for water supply, drainage, HVAC, and sewage.
Complete Set Components

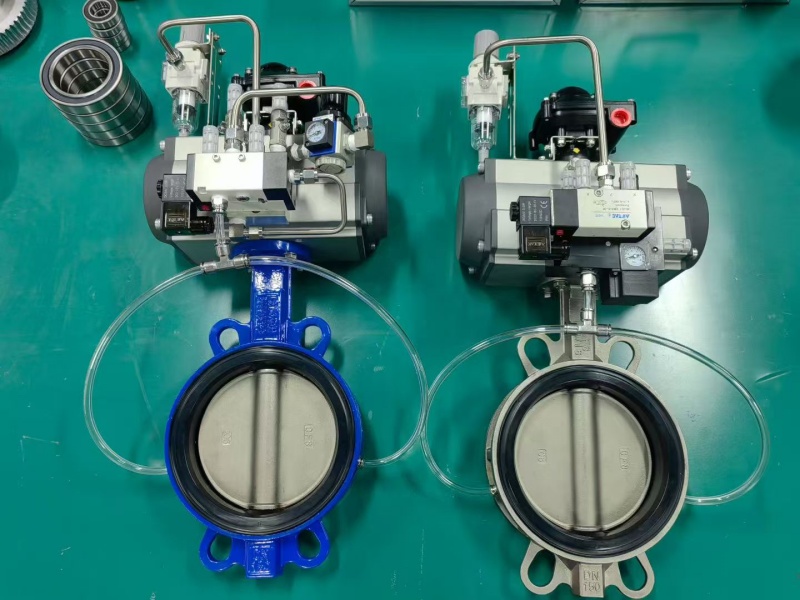

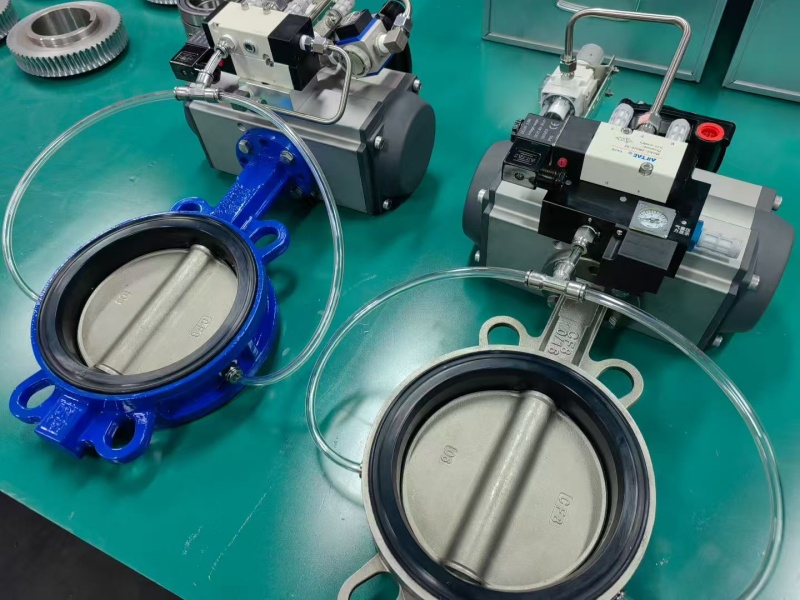

Center-line soft-seal wafer butterfly valve body (smooth stem D71X valve body)
Pneumatic actuator: AT/GT rack and pinion structure; optional double-acting (continuous position holding), single-acting spring return (automatic switch in case of air loss)
Air source triplet F.R.L. (filter + pressure reducing valve + lubricator)
Filter: Removes moisture, dust, and impurities from compressed air; equipped with manual/automatic drainage
Pressure reducing valve: Stabilizes output air pressure, preventing valve malfunctions caused by pipeline pressure fluctuations
Lubricator: Atomizes lubricating oil, continuously lubricating the internal moving parts of the actuator
Optional accessories: Solenoid valve (DC24V/AC220V), valve position limit signal, silencer
Specifications:
Operation type:Pneumatic
Size: DN50-DN1200
Pressure: PN10/16, Class150,JIS6K/10K
Design | Flange Connection | Face to Face | Test |
MSS SP-67
API609
EN593 | DIN PN10/16/25; ANSI B 16.1
BS4504; ISO PN10/16
JIS B 2212/2213
BS 10 table D; BS 10 table E | API609
ISO5752 BS5155 | API 598 |
|
-------------------------------------------------------------------------------------------------------------------------------------------
Materials:
Body : WCB
Disc: CF8M
Seal : PTFE
Stem : Stainless Steel
Actuator:Double Acting Pneumatic Actuator with Triplex
No. | Part Name | Material |
1 | Body | Cast Iron/Carbon Steel/Stainless Steel/Al-Bronze |
2 | Disc | Cast Iron/Stainless Steel/Al-Bronze |
3 | Seat | EPDM/PEFE/Buna/NBR/Hypalon/Viton |
4 | Stem | WCB/SS416/SS410 |
5 | Bushing | PTFE/Lubricating |
6 | O ring | EPDM/PEFE/Buna/NBR/Hypalon |
-------------------------------------------------------------------------------------------------------------------------------------------
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-20~120℃
Nominal Pressure (Mpa) | 1.0 | 1.6 |
Nominal Diameter(mm) | 40-600 | 40-600 |
Test Pressure (Mpa) | Shell | 1.5 | 2.4 |
Seal | 1.1 | 1.76 |
Applicable Temperature | -20-120℃ |
Applicable Medium | Water, Sewage, Sea water, Air, Food, Medicine, Oils, Acids, etc. |
Operating Type | Manual, Worm Gear, Pneumatic, Electric, etc.
|
