Product Introduction：

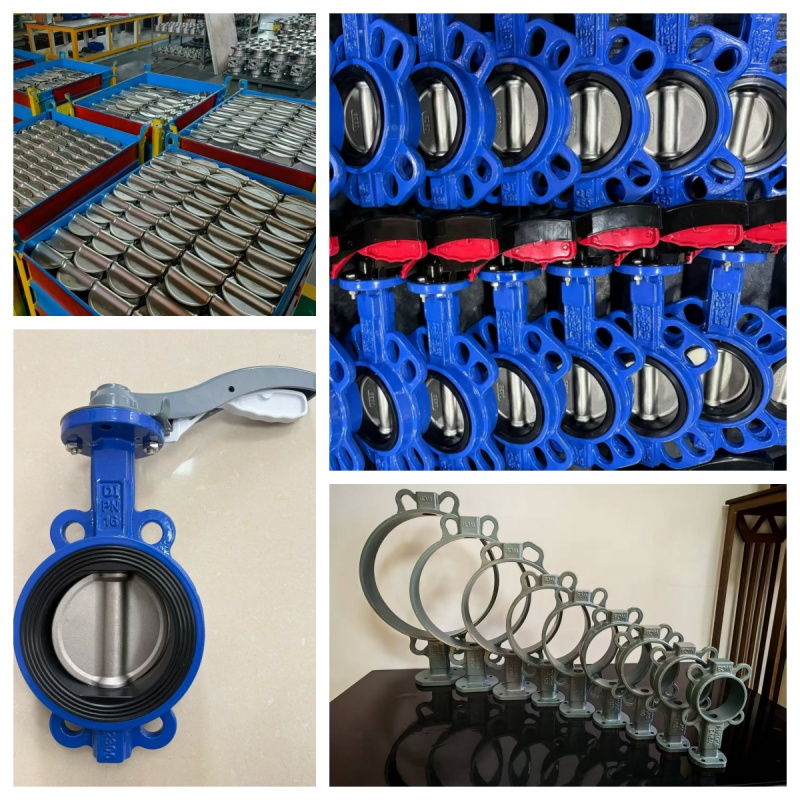

Aluminum Alloy Handle Centerline Soft Seal Wafer Butterfly Valve
Composed of a ductile iron wafer valve body, butterfly plate, valve stem, rubber valve seat, and aluminum alloy multi-position handle.
It is installed by clamping with flanges on both sides of the pipeline; manually rotating the aluminum handle 90° rotates the butterfly plate to achieve pipeline medium cutoff and flow regulation.
The aluminum handle has a built-in ratchet positioning tooth, which can lock any opening angle. It is a commonly used economical manual butterfly valve for water supply, drainage, and heating.
Product Features:
Aluminum alloy die-cast handle, lightweight and rust-proof.
Thin clamp-on structure, cost-effective installation.
Low opening and closing torque, easy operation.
Convenient maintenance, universal parts
Unrestricted flow direction, flexible installation.
High cost-performance ratio.
Applicable diameters: Standard DN40～DN200; for DN250 and above, the torque is too high, so worm gear butterfly valves are recommended.
Specifications:
Operation type:Manual-Lever
Size: DN50-DN1200
Pressure: PN10/16, Class150,JIS6K/10K
Design | Flange Connection | Face to Face | Test |
MSS SP-67
API609
EN593 | DIN PN10/16/25; ANSI B 16.1
BS4504; ISO PN10/16
JIS B 2212/2213
BS 10 table D; BS 10 table E | API609
ISO5752 BS5155 | API 598 |
|
-----------------------------------------------------------------------------------------------------------
Materials:
Body : Ductile Iron
Disc: Aluminum Bronze
Seal : EPDM
Stem : Stainless Steel
Lever:Aluminum
No. | Part Name | Material |
1 | Body | Cast Iron/Carbon Steel/Stainless Steel/Al-Bronze |
2 | Disc | Cast Iron/Stainless Steel/Al-Bronze |
3 | Seat | EPDM/PEFE/Buna/NBR/Hypalon/Viton |
4 | Stem | WCB/SS416/SS410 |
5 | Bushing | PTFE/Lubricating |
6 | O ring | EPDM/PEFE/Buna/NBR/Hypalon |
--------------------------------------------------------------------------------------------------------------------------------------
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-20~120℃
Nominal Pressure (Mpa) | 1.0 | 1.6 |
Nominal Diameter(mm) | 40-600 | 40-600 |
Test Pressure (Mpa) | Shell | 1.5 | 2.4 |
Seal | 1.1 | 1.76 |
Applicable Temperature | -20-120℃ |
Applicable Medium | Water, Sewage, Sea water, Air, Food, Medicine, Oils, Acids, etc. |
Operating Type | Manual, Worm Gear, Pneumatic, Electric, etc. |
