Product Introduction：

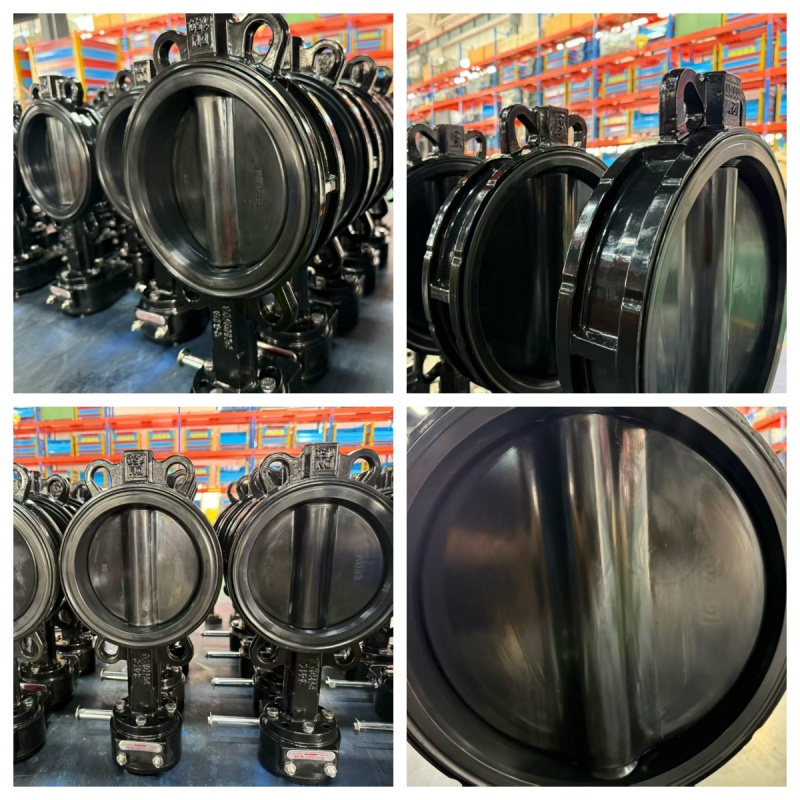

Wafer Fully Rubber Lined Butterfly Valve: The valve body and flow channel inner wall, as well as the butterfly plate, are integrally lined with high-temperature vulcanized rubber.

It employs a clamp-on connection, relying on the pipe flanges on both sides and through bolts to secure the valve body.

It can be manufactured as an ISO5211 smooth rod high platform, with optional handle, worm gear, pneumatic, and electric actuators.

The medium is in full contact with the rubber lining, isolating the metal valve body.

Primarily designed for corrosion resistance and economical use as a mid-section shut-off valve in pipelines.

Applicable Conditions:

Municipal sewage, chemical wastewater, dilute acid and alkali pipelines in pickling production lines.

Power plant and water plant desulfurization, circulating water, and sludge slurry systems.

Electroplating, printing and dyeing, and papermaking corrosive process pipelines.

Seawater desalination and brine solution transportation pipelines.

Outlet branch pipes and end shut-off valves of complete sets of corrosion-resistant equipment.

Inlet and outlet valves of environmental protection waste gas scrubbing towers.

Technical Parameters:

Nominal Diameter: DN50～DN1200

Pressure: PN10, PN16; Class 150

Structural Length: EN593, GB/T12221

Connection: Wafer

Material:

Body Material: QT450 Ductile Iron / WCB Carbon Steel

Actuation Type: Smooth shaft, manual, worm gear, pneumatic, electric.

Rubber Lining Application Reference:

EPDM: -10～120℃, wastewater, desulfurization water, seawater, dilute acids and alkalis.

NR Natural Rubber: ≤85℃, neutral slurry, tap water.

CR Neoprene Rubber: Resistant to chlorine-containing wastewater.

NBR: Oily wastewater.

All valves are equipped with professional export protective packaging.

With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.

We can also customize packaging according to customer requirements.

Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.

Common transportation methods include: sea freight, air freight, land freight, and express delivery.
