Product Introduction：

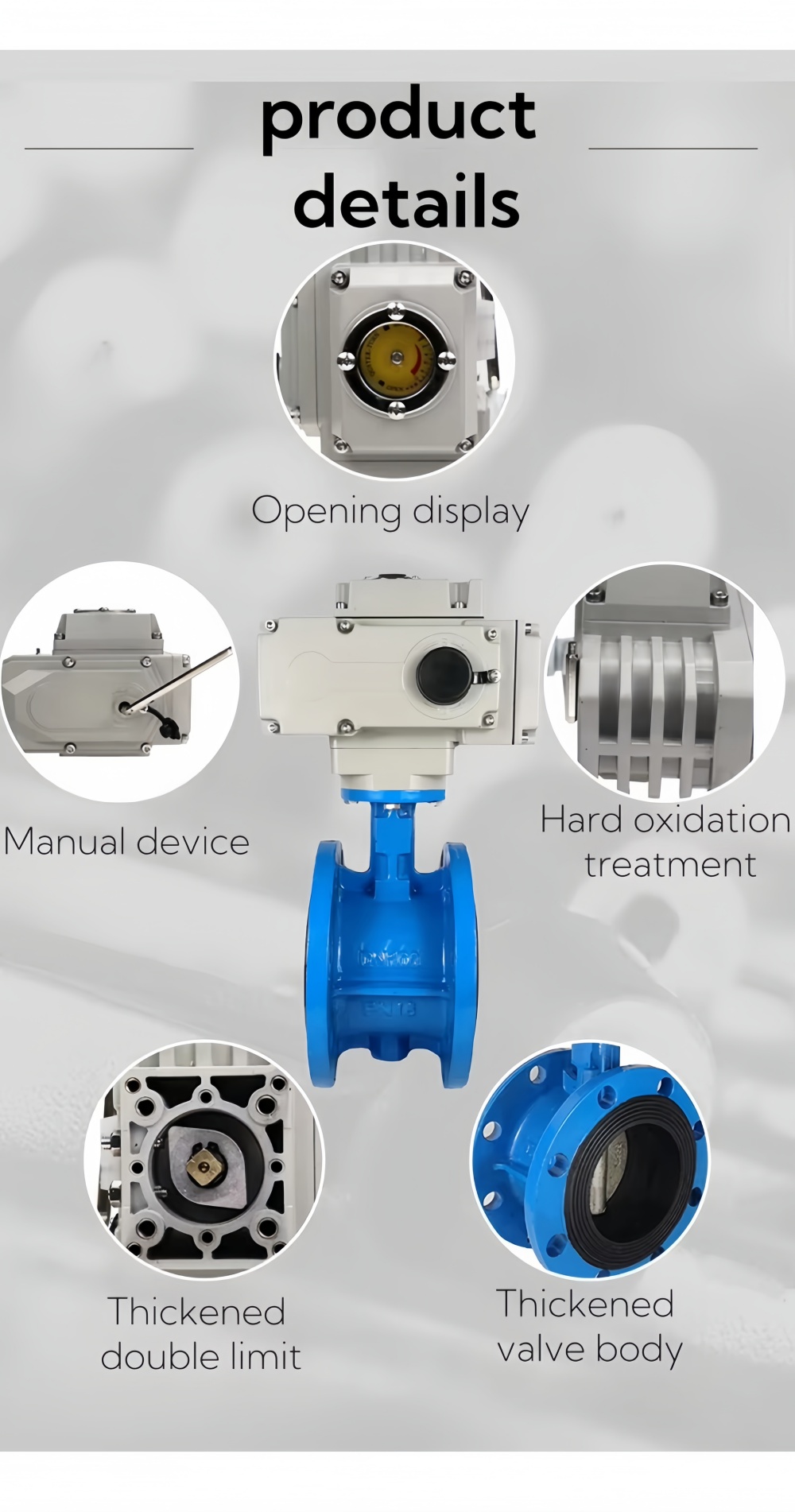

Electric butterfly valves are industrial valves that achieve opening and closing control by rotating the valve stem through an electric actuator.
They are available in wafer or flange connection types and mainly consist of a valve body, butterfly plate, and sealing components.
Their structure is divided into two types: metal seal and soft seal. The metal seal uses a three-dimensional eccentric design and a "U"-shaped stainless steel sealing ring to solve the friction problem of the sealing surface in traditional butterfly valves; the soft seal achieves zero leakage through rubber/fluoropolymer lining.
This product has a nominal diameter ranging from DN50 to DN300mm, is suitable for pressure ratings up to PN16MPa, and has an operating temperature range of -29℃ to 300℃.
It is compatible with actuators operating at various voltages, including AC220V/110V/380V and DC24V/12V.
It is widely used in industrial settings such as coal chemical, petrochemical, rubber, papermaking, and pharmaceutical industries, meeting the needs of diversion, merging, and flow direction switching of pipeline media.
Specifications:
Operation type:Electric-Switch Type
Size: DN50-DN600
Pressure: PN10/16, Class150,JIS6K/10K
Face to Face Standard: API609,BS5155,DIN3202,ISO5752
Flange Standard:DIN,BS,ISO,ANSI,AS,JIS
Mounting Flange:ISO5211
Materials:
Body : Ductile Iron
Disc: Ductile Iron
Seal : NBR
Stem : Stainless Steel
No. | Part Name | Material |
1 | Body | Cast Iron/Carbon Steel/Stainless Steel/Al-Bronze |
2 | Disc | Cast Iron/Stainless Steel/Al-Bronze |
3 | Seat | EPDM/PEFE/Buna/NBR/Hypalon/Viton |
4 | Stem | WCB/SS416/SS410 |
5 | Bushing | PTFE/Lubricating |
6 | O ring | EPDM/PEFE/Buna/NBR/Hypalon |
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-20~120℃
Nominal Pressure (Mpa) | 1.0 | 1.6 |
Nominal Diameter(mm) | 40-600 | 40-600 |
Test Pressure (Mpa) | Shell | 1.5 | 2.4 |
Seal | 1.1 | 1.76 |
Applicable Temperature | -20-120℃ |
Applicable Medium | Water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, etc. |
Operating Type | Manual, Worm Gear, Pneumatic, Electric, etc. |
Actuator Date Sheet:
ON/OFF Electric Actuators |
|
|
|
|
|
|
|
|
Model | 3 | 5 | 10 | 15 | 30 | 60 | 100 | 200 |
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm |
Actuator speed | 25S | 25S/50S | 10S/15S/30S/60S | 30S/60S | 30S | 45S |
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A |
Motor power | 6W/F | 15W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F |
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph |
Modulating Electric Actuators |
|
|
|
|
|
|
|
|
Model | 03E | 05E | 10E | 15E | 30E | 60E | 100E | 200E |
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm |
Actuator speed | 25S | 25S/50S | 10S/15S/30S/60S | 30S/60S | 30S | 45S |
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A |
Motor power | 6W/F | 15W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F |
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph |
Input signal | 4-20mADC,1-5VDC,0-10VDC |
Output signal | 4-20mADC,0-10VDC |
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
