Product Introduction:
The pneumatic flanged butterfly valve is assembled from a flanged butterfly valve body and a rotary pneumatic actuator, enabling remote automated control of the valve via air supply.
The butterfly plate rotates from 0° to 90° to cut off the pipeline medium or regulate flow; the flange connection ensures secure installation and facilitates easy disassembly and maintenance.
It can be equipped with accessories such as solenoid valves, air supply triplet units, limit switches, and pneumatic positioners.
Available in two main types—on/off and regulating—it is widely used in automated pipelines in water supply and drainage, HVAC,
environmental protection, chemical, and thermal industries, and is a mainstream valve in fluid control systems.
Advantages:
1. Pneumatically driven, rapid response
2. Rigid flange connection
3. Flexible configuration options
4. Excellent flow performance
5. Safe and reliable, suitable for explosion-proof environments
6. Easy maintenance
7. Standardized interfaces
Specifications:
Operation type:Pneumatic-Double Acting
Size: DN50-DN2200
Pressure: PN10/16, Class150,JIS6K/10K
Face to Face Standard: API609,BS5155,DIN3202,ISO5752
Flange Standard:DIN,BS,ISO,ANSI,AS,JIS
Mounting Flange:ISO5211
Materials:
Body :WCB
Disc: CF8
Seal : EPDM
Stem : Stainless Steel

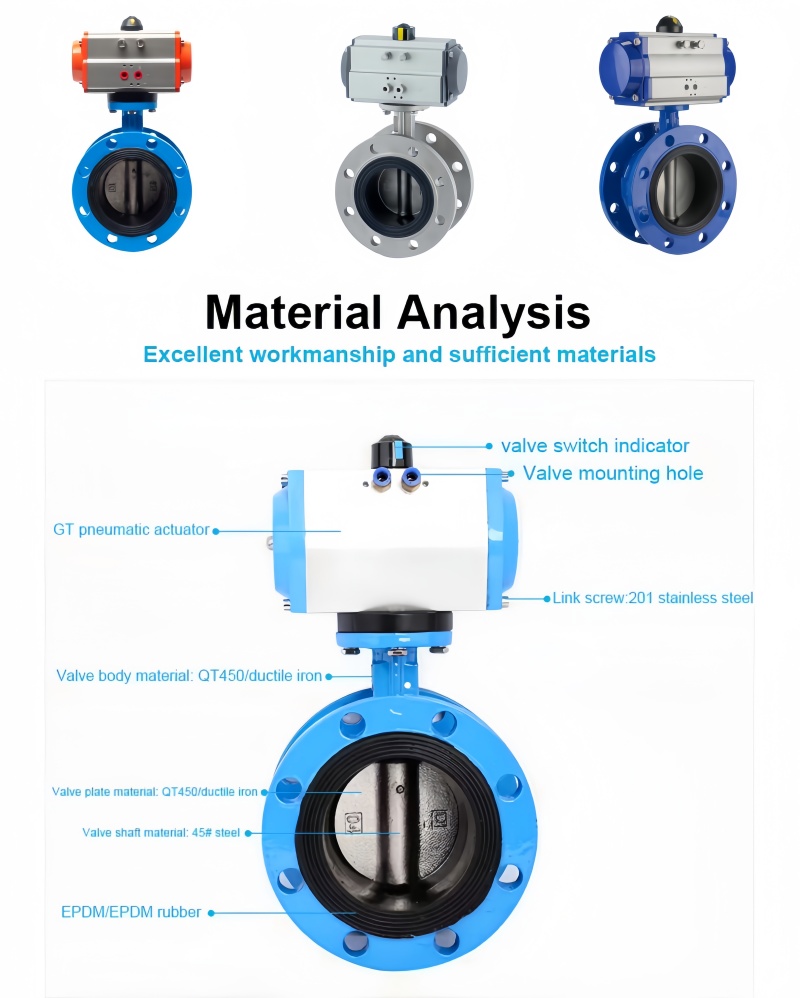

No. | Part Name | Material |
1 | Body | Cast Iron/Carbon Steel/Stainless Steel/Al-Bronze |
2 | Disc | Cast Iron/Stainless Steel/Al-Bronze |
3 | Seat | EPDM/PEFE/Buna/NBR/Hypalon/Viton |
4 | Stem | WCB/SS416/SS410 |
5 | Bushing | PTFE/Lubricating |
6 | O ring | EPDM/PEFE/Buna/NBR/Hypalon |
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-20~120℃
Nominal Pressure (Mpa) | 1.0 | 1.6 |
Nominal Diameter(mm) | 40-600 | 40-600 |
Test Pressure (Mpa) | Shell | 1.5 | 2.4 |
Seal | 1.1 | 1.76 |
Applicable Temperature | -20-120℃ |
Applicable Medium | Water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, etc. |
Operating Type | Manual, Worm Gear, Pneumatic, Electric, etc. |
