Product Overview:

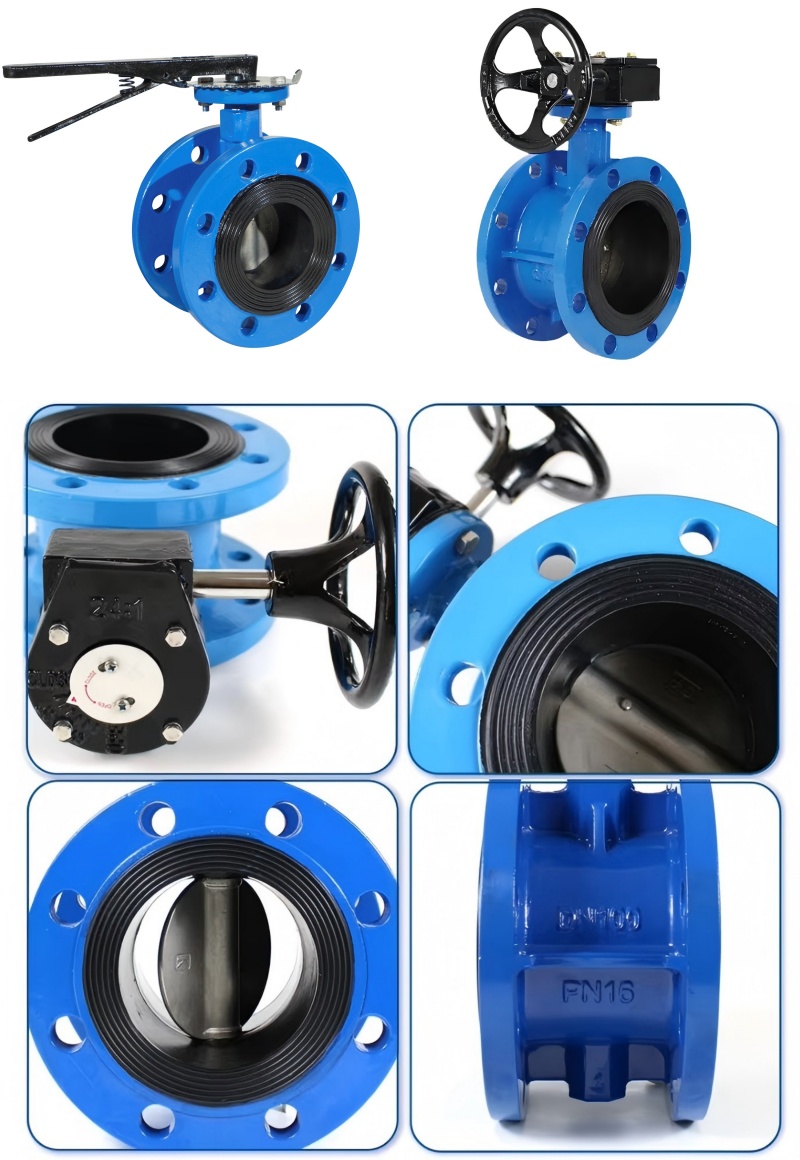

The handle-operated flanged butterfly valve is a manually operated straight-handle type.
The valve body uses a flange connectio.n structure, and the valve stem is directly driven by the handle, causing the butterfly plate to rotate from 0° to 90°, thus controlling the flow of media in the pipeline.
It has a simple structure, requires no external power, and relies on manual on-site operation. It is an economical shut-off valve and is generally not used for precise flow regulation.
It comes standard with a mechanical angle limit device, allowing for arbitrary positioning within the 0~90° range;
It is widely used in small to medium diameter pipelines with low operating frequency and where remote automation is not required.
Application distinction:
Handle type is suitable for small and medium diameters from DN50 to DN200;
For large diameters with high torque, it is recommended to choose worm gear flange butterfly valve.
Advantages:
• Manual lever operation, no power or air supply required, low cost.
• Stable flanged connection, easy installation and maintenance.
• Quick 90-degree open/close, low flow resistance.
• Bidirectional bubble-tight sealing.
• Optional lockable lever to prevent unintended operation.
• Multiple material options for body, disc and seat.
Specifications:
Operation type:Manual-Worm Gear
Size: DN50-DN2200
Pressure: PN10/16, Class150,JIS6K/10K
Face to Face Standard: API609,BS5155,DIN3202,ISO5752
Flange Standard:DIN,BS,ISO,ANSI,AS,JIS
Mounting Flange:ISO5211
Materials:
Body : Cast Iron
Disc: CF8
Seal : EPDM
Stem : SS416
Worm Gear:Cast Iron
No. | Part Name | Material |
1 | Body | Cast Iron/Carbon Steel/Stainless Steel/Al-Bronze |
2 | Disc | Cast Iron/Stainless Steel/Al-Bronze |
3 | Seat | EPDM/PEFE/Buna/NBR/Hypalon/Viton |
4 | Stem | WCB/SS416/SS410 |
5 | Bushing | PTFE/Lubricating |
6 | O ring | EPDM/PEFE/Buna/NBR/Hypalon |
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-20~120℃
Nominal Pressure (Mpa) | 1.0 | 1.6 |
Nominal Diameter(mm) | 40-600 | 40-600 |
Test Pressure (Mpa) | Shell | 1.5 | 2.4 |
Seal | 1.1 | 1.76 |
Applicable Temperature | -20-120℃ |
Applicable Medium | Water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, etc. |
Operating Type | Manual, Worm Gear, Pneumatic, Electric, etc. |
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
