Product Introduction:

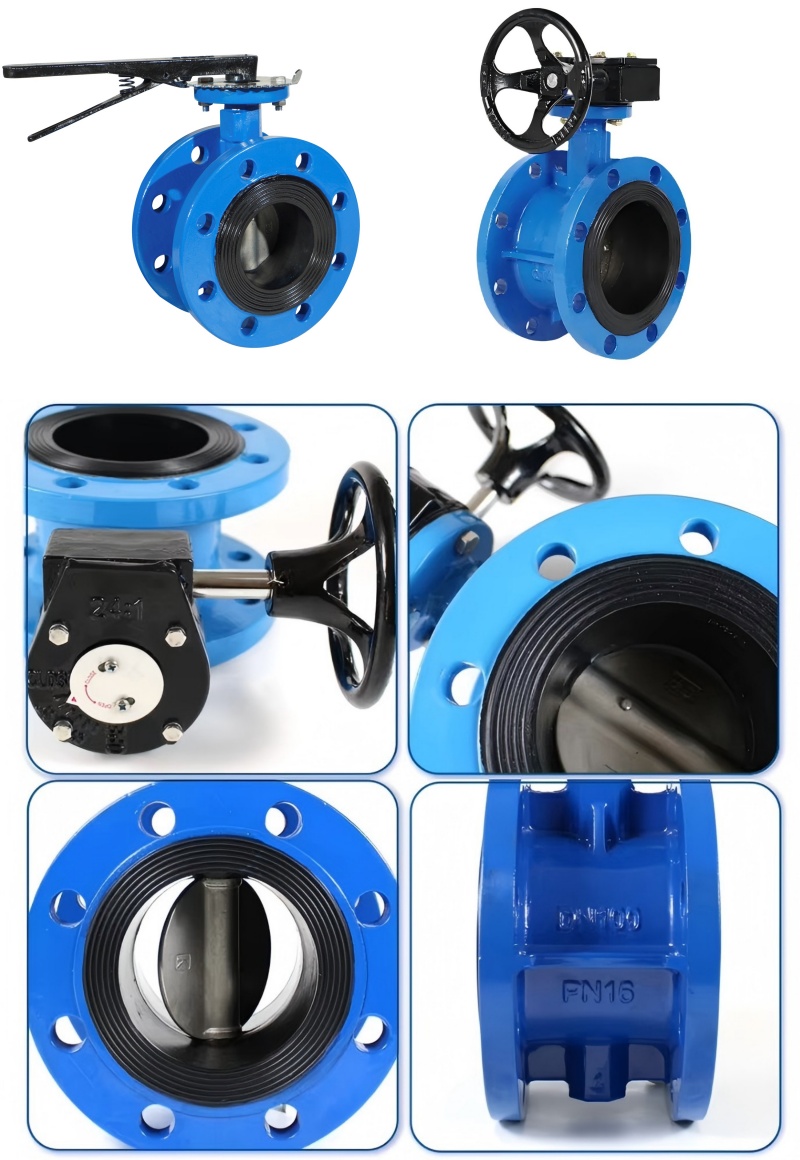

The worm gear head flange butterfly valve consists of a flanged butterfly valve body and a worm gear reducer transmission device.
Relying on the worm gear mechanism to reduce torque, the manual handwheel operation rotates the butterfly plate from 0° to 90°, achieving pipeline medium cutoff and throttling regulation.
Compared to handle butterfly valves, the operating torque is significantly reduced, making it suitable for medium and large diameter valves.
It features a self-locking mechanism; the valve automatically locks after the handwheel stops rotating, preventing it from opening and closing automatically due to medium thrust.
Requiring no power or air supply, it is suitable for on-site manual operation, moderate opening and closing frequency, and no remote automatic control requirements.
It is a mainstream manual valve commonly used in water supply and drainage, HVAC, and environmental protection projects.
Features
• Worm gear torque boosting, easy operation for large size.
• Built-in self-locking structure, stable disc position.
• Visible position indicator to show opening degree.
• Bidirectional tight sealing, low flow resistance.
• No power or air supply required, suitable for field manual operation.
• Optional lock device to avoid accidental operation.
• Convenient to retrofit with electric/pneumatic actuator.
Specifications:
Operation type:Manual-Worm Gear
Size: DN50-DN2200
Pressure: PN10/16, Class150,JIS6K/10K
Face to Face Standard: API609,BS5155,DIN3202,ISO5752
Flange Standard:DIN,BS,ISO,ANSI,AS,JIS
Mounting Flange:ISO5211
Materials:
Body : Cast Iron
Disc: CF8
Seal : EPDM
Stem : SS416
Worm Gear:Cast Iron
No. | Part Name | Material |
1 | Body | Cast Iron/Carbon Steel/Stainless Steel/Al-Bronze |
2 | Disc | Cast Iron/Stainless Steel/Al-Bronze |
3 | Seat | EPDM/PEFE/Buna/NBR/Hypalon/Viton |
4 | Stem | WCB/SS416/SS410 |
5 | Bushing | PTFE/Lubricating |
6 | O ring | EPDM/PEFE/Buna/NBR/Hypalon |
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-20~120℃
Nominal Pressure (Mpa) | 1.0 | 1.6 |
Nominal Diameter(mm) | 40-600 | 40-600 |
Test Pressure (Mpa) | Shell | 1.5 | 2.4 |
Seal | 1.1 | 1.76 |
Applicable Temperature | -20-120℃ |
Applicable Medium | Water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, etc. |
Operating Type | Manual, Worm Gear, Pneumatic, Electric, etc. |
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
