Product introduction:

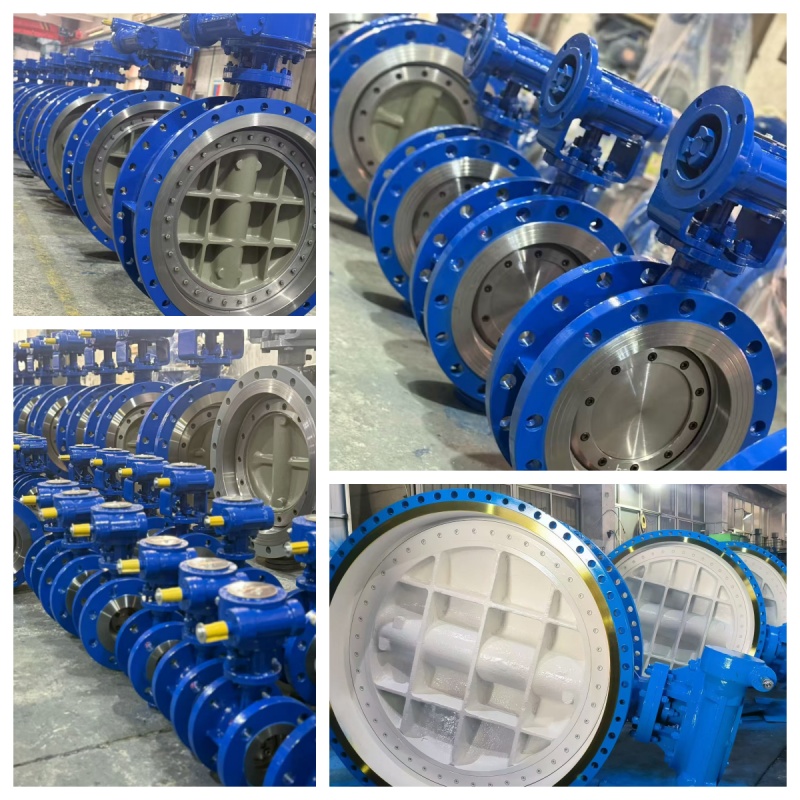

Triple Eccentric Flange Metal Seated Butterfly Valve.
Triple eccentric metal hard seal butterfly valve adopts triple offset design, metal laminated sealing ring.
No friction between disc and seat during opening and closing.
It features high temperature resistance, high pressure resistance, fire safe, bi-directional tight shutoff.
Worm gear handwheel operation. Flange connection.
Widely used for steam, hot oil, fuel gas, high temperature flue gas in power plant, petrochemical, heating engineering.
Main Features:
1.Triple Offset Sealing StructureThree offset design eliminates continuous friction of sealing surfaces during operation.
Wedge compression sealing when fully closed to achieve reliable bi-directional tight shutoff.
2.Multi-layer Metal Laminate SealStainless steel laminated metal sealing ring resists high temperature, erosion and fire hazard, no aging failure under high temperature environment compared with rubber soft seal.
3.Flange End ConnectionStandard flange connection ensures stable installation and high pressure bearing capacity, available in DN50~DN1200.
4.Worm Gear OperatorHandwheel worm gear unit provides easy operation with opening position indicator. It can be refitted with electric or pneumatic actuator for automatic control.
5.Wide Working AdaptabilitySuitable for medium with tiny particles, bidirectional pressure bearing, applicable for low temperature and high temperature working conditions.
Technical Specification:
Nominal Diameter: DN50 ~ DN1200.
Nominal Pressure: PN16, PN25, PN40,Class150.
Body Material: WCB , Stainless Steel
Seal: Stainless Steel multi-layer metal seal.
Medium: Steam, thermal oil, fuel oil, gas, high temperature flue gas, industrial hot fluid.
Temperature Range: -40℃ ~ 425℃.
Operation: Manual worm gear, electric, pneumatic.
Standards: GB, ISO, API available.
Application Fields:
Thermal power plant, district heating steam pipeline, petrochemical industry, metallurgy, flue gas pipeline, gas transportation, coal chemical industry.
Product Name | Double Eccentric Butterfly Valve |
Size (mm) | 50-2000mm |
Flange connection | BS4504 PN10, PN16, PN25 and PN40.
DIN2501 PN10, PN16, PN25 and PN40.
ANSI B16.5, 16.47 / 150LB, 300LB
JIS 10K, 16K & 20K / 30K / 40K
|
Face to Face Dimensions | API609,BS5155,ISO5752,ANSI16.34 |
Material | Body | WCB; CF8; CF8M; Al-bronze;STL |
Disc | WCB; CF8; CF8M; Al-bronze;STL |
Stem | SS410/420/416; Monel |
Seat | CF8; CF8M;STL+Flexible Graphite |
| Packing | Flexible Graphite;PTFE |
Operating | Wormgear; Electric; Pneumatic ; |
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
